Product Name:

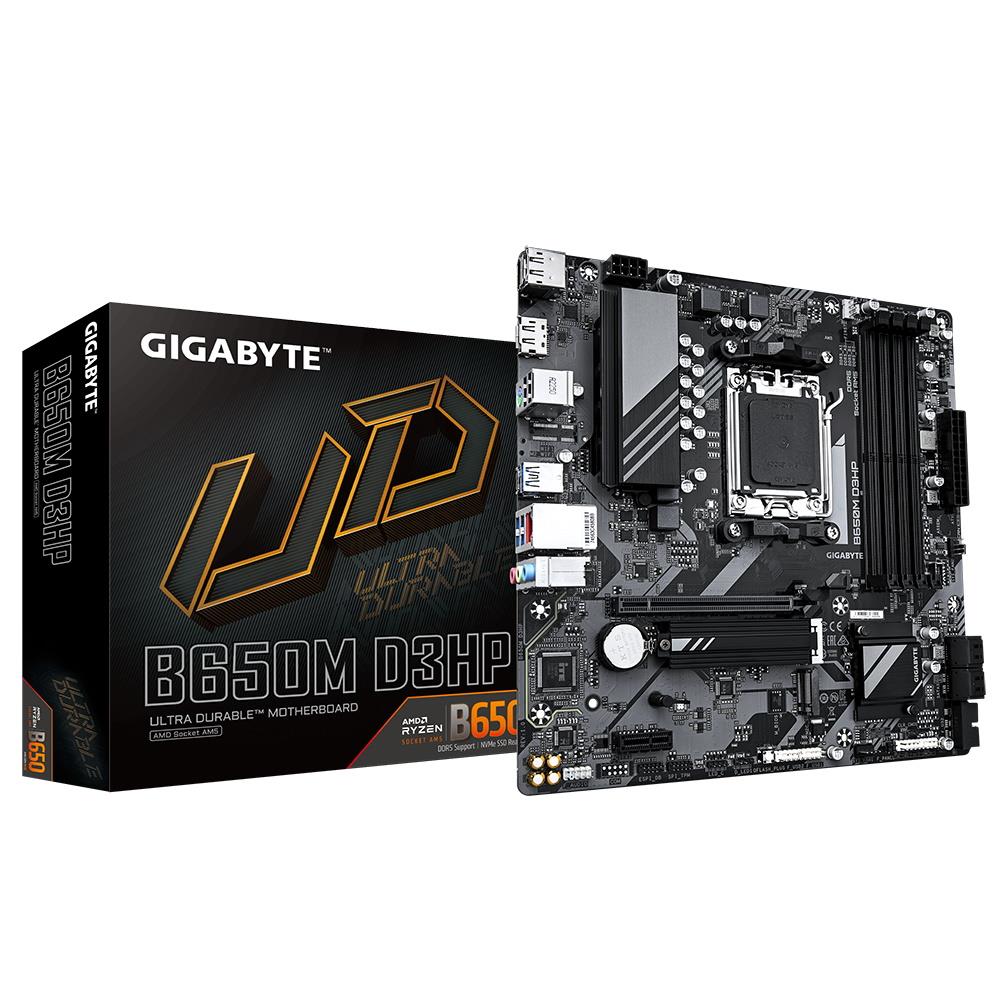

Gigabyte B650M D3HP (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B650M D3HP

EAN:

4719331857851

UPC:

889523039083

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.gigabyte.com/Motherboard/B650M-D3HP-rev-10/support#support-cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

On-Board Audio:

Realtek Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x Addressable LED strip headers1 x RGB LED strip header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

27cm

Package Height:

5.5cm

Gross Weight:

0.93Kg

Special Features:

AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors.Unparalleled Performance: 5+2+2 Phases Digital VRM Solution.Dual Channel DDR5: 4 x SMD DIMMs with AMD EXPO and Intel XMP Memory Module Support.SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector.EZ-Latch: PCIe x16 Slot with Quick Release Design.Fast Networks: 2.5GbE LAN.Extended Connectivity: 2 x DP, HDMI.Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.

Package Contents:

MotherboardManual1 x SATA cableIO Shield
