Product Name:

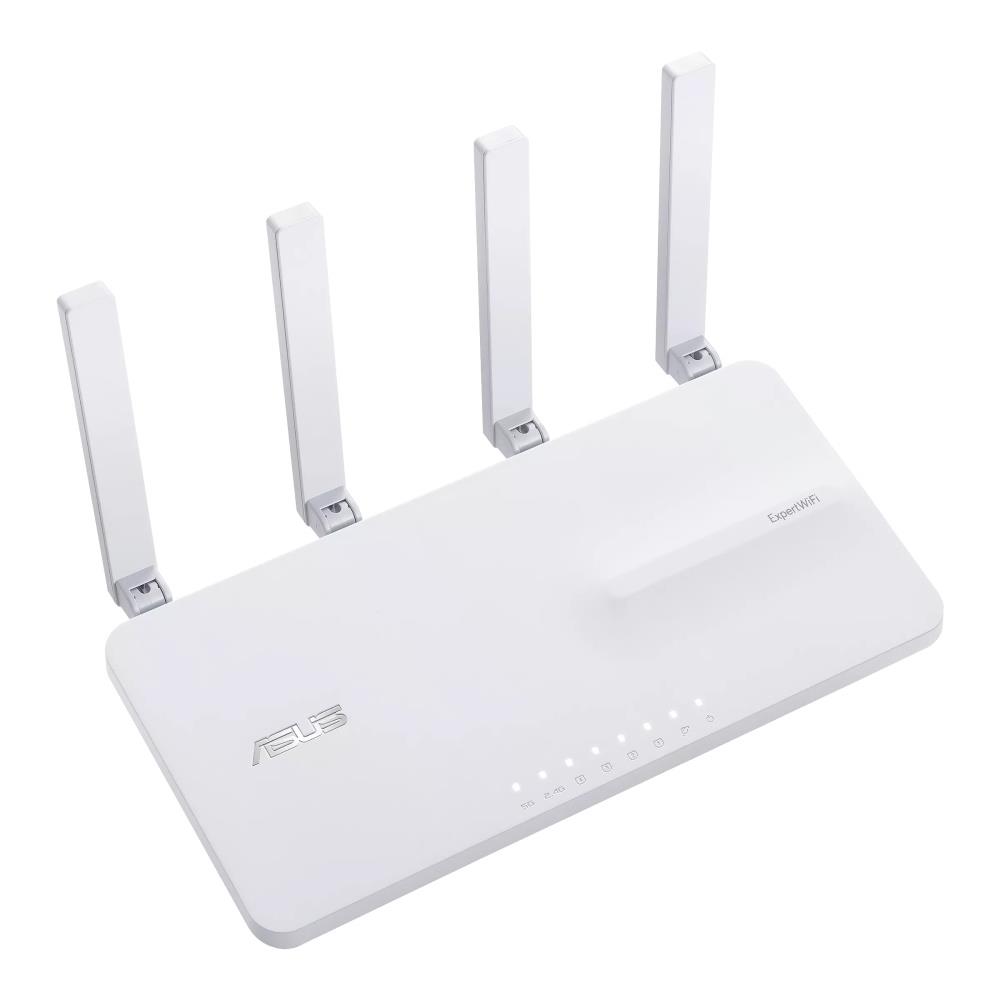

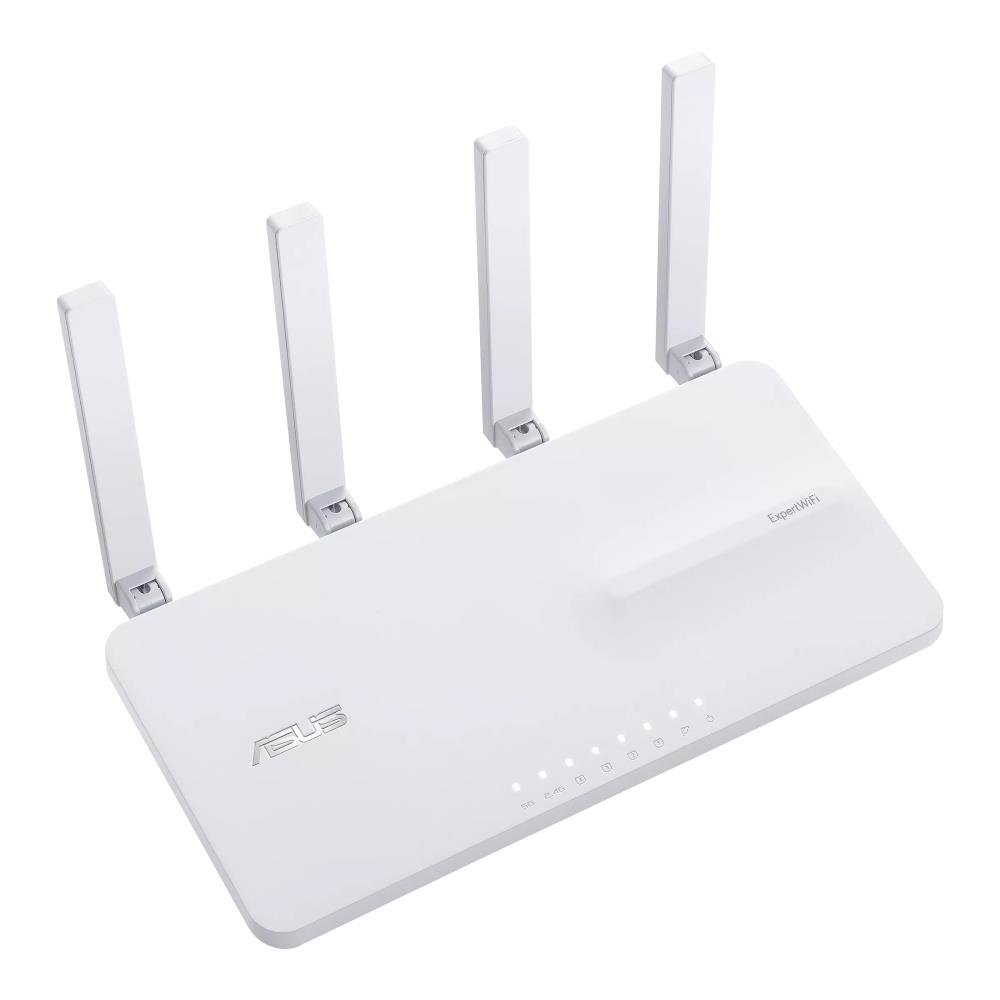

ASUS ExpertWiFi EBR63 WiFi 6 All in One Access Point with Router, Switch and Security Gateway - White - AX3000

Web Address:

www.asus.com

Model Number:

EBR63

EAN:

4711387004555

UPC:

197105004559

Package Type:

Retail

Warranty:

3 Years

Device Type:

Access Point with Router, Switch and Security Gateway

Ports:

• WAN: 1 x RJ-45
• LAN: 4 x RJ-45
• 1 x USB 3.2 Gen 1
• 1 x USB 2.0

Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Transfer Rate:

• 802.11a: up to 54Mbps
• 802.11b: up to 11Mbps
• 802.11g: up to 54Mbps
• WiFi 4 (802.11n): up to 300Mbps
• WiFi 5 (802.11ac): up to 1734Mbps
• WiFi 6 (802.11ax) (2.4GHz): up to 574Mbps
• WiFi 6 (802.11ax) (5GHz): up to 2402Mbps

Network Architecture Types:

Infrastructure

Processor:

1.7GHz Quad-core

Memory:

• 256MB FLASH
• 512MB RAM

Antenna Type:

4 x External

Frequency Range:

• 2.4GHz 2x2
• 5GHz 2x2

Security:

• AiProtection
• VPN
• WiFi Encryption
• WPS
• Let's Encrypt
• DNS-over-TLS
• SSH
• Firewall
• Maximum Firewall Keyword Filter: 64
• Maximum Firewall Network Service Filter: 32
• Maximum Firewall URL Filter: 64

Management:

• Configuration Backup and Restore
• Diagnosis Tools
• Feedback System
• System Log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Auto Firmware Update

VPN Support:

• VPN Client L2PT
• VPN Client Open VPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server Open VPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion
• Support Surfshark

LED indicators:

• 1 x Power
• 1 x WAN
• 1 x LAN
• 1 x 5G
• 1 x 2.4G

Button:

• WPS
• Reset
• Power

Input Power:

• AC Input: 110V-240V (50-60Hz)
• DC Output : 12V with max. 2A current

Product Weight:

436g

Package Width:

18.5cm

Package Length:

24cm

Package Height:

7.2cm

Gross Weight:

0.81Kg

Special Features:

• Secure and Segmented Networking: Easy business WiFi network settings via Self-Defined Networks, and enhanced business security with VLAN support, offering up to five SSIDs for device segregation and prioritization in diverse business scenarios.
• Customizable Guest Portal: Guest portals can be tailored to meet your business needs, with custom portal types, branding and visual templates to fit particular business styles.
• Backup WAN for Stable Connectivity: The USB port can be used as a backup WAN by connecting it to a mobile phone with hotspot to maintain a reliable internet connection.
• Commercial-Grade Network Security and VPN - Safe Browsing, VPN features to connect easily and securely to public WiFi, and a free subscription to ASUS AiProtection Pro.
• Accommodate to Any Space - The EBR63 comes with a built-in bracket and wall mount hole that can be adjusted to fit into almost any location for space-saving and more flexibility.

Package Contents:

• ExpertWiFi EBR63
• RJ45 Ethernet Cable
• UK Power Adapter
• Quick Start Guide
• Warranty Card
