Product Name:

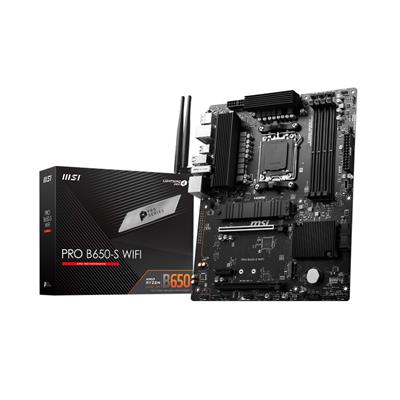

MSI PRO B650-S WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

C-PRO B650-S WIFI

EAN:

4711377132862

UPC:

824142336267

Package Type:

Retail

Warranty:

1 Year

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/PRO-B650-S-WIFI/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6000+ (O.C.)

Max. Memory Support:

192GB

PCI Express 4.0 x16:

2

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek 8125BG 2.5G LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
• Supports 802.11 a/b/g/n/ac/ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

4

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller connector(JDASH)
• 2 x Addressable V2 RGB LED connector (JARGB_V2)
• 2 x RGB LED connector(JRGB)

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

35cm

Package Height:

6.5cm

Gross Weight:

1.46Kg

Special Features:

• Supports AMD Ryzen 7000 Series Desktop Processors.
• Supports DDR5 Memory, Dual Channel DDR5 6000+MHz (OC).
• Enhanced Power Design: 12+2 Duet Rail Power System with P-PAK, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Premium Thermal Solution: MOSFET thermal pads rated for 7W/mK and M.2 Shield Frozr are built for high performance system and non-stop work.
• High Quality PCB: 6-layer PCB made by 2oz thickened copper.
• Lightning-Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2x2.
• 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• EZ M.2 Clip
• Wi-Fi Antenna
• SATA Cable
• IO Shield
