Product Name:

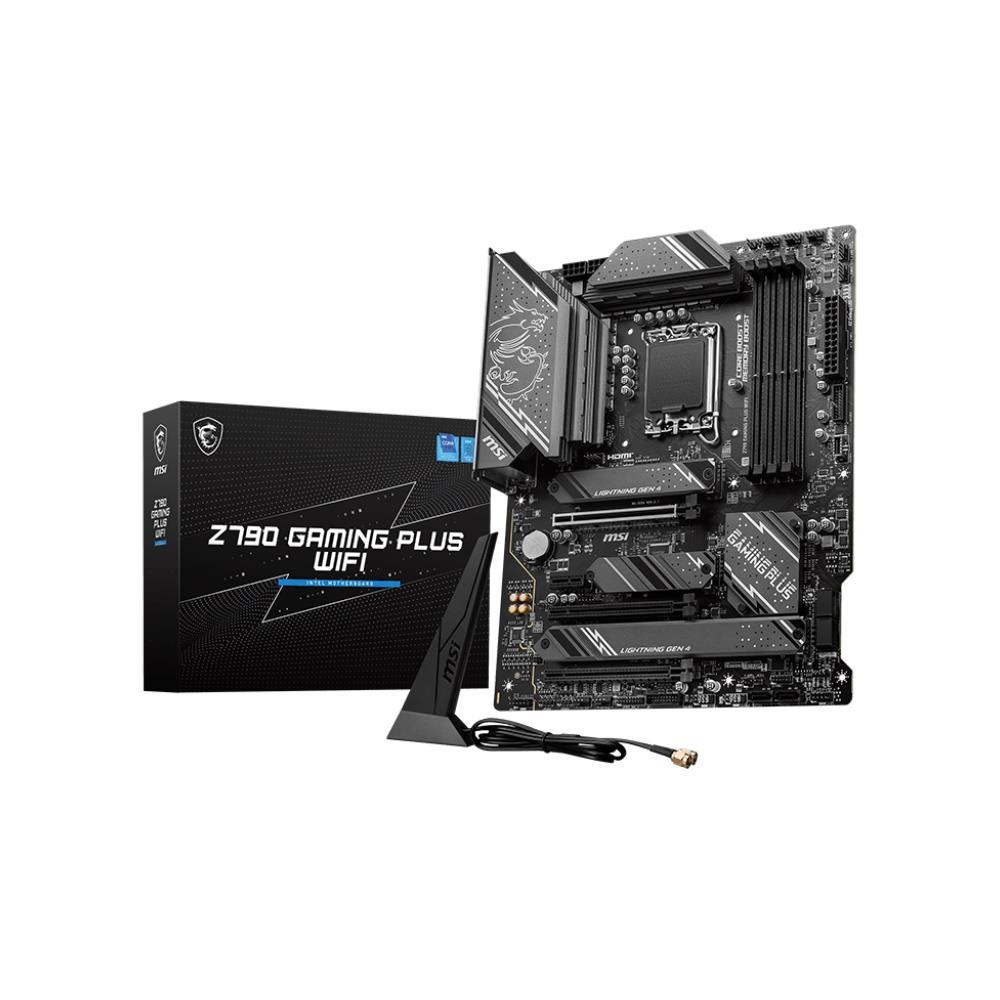

MSI Z790 GAMING PLUS WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

Z790 GAMING PLUS WIFI

EAN:

4711377134712

UPC:

824142334898

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z790

CPU Interface:

Socket 1700

CPU Support:

https://www.msi.com/Motherboard/Z790-GAMING-PLUS-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7200+ (O.C.)

Max. Memory Support:

192GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 2 x PCIe Gen 4.0 x4
• 2 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

Intel 2.5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.3

On-Board Audio:

• RealtekALC897 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Other Port(s):

Wi-Fi / Bluetooth Antenna

Back Button(s):

Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

4

USB 3.2 Header(s) Gen 1:

4

USB 3.2 Header(s) Gen 2:

1

Thunderbolt AIC Connector(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller connector
• 2 x Addressable V2 RGB LED connector
• 2 x RGB LED connector
• 4 x EZ Debug LED

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

1.77Kg

Special Features:

• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
• Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
• M.2 Shield FROZR: M.2 thermal accessory keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
• 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
• Wi-Fi 6E: The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS colour technology, delivering speeds up to 2400Mbps.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Package Contents:

• Motherboard
• Wi-Fi Antenna
• 2 x SATA Cables
• EZ M.2 Clips
• M.2 Screw / Standoff Set
• Setup Disk
• Cable Sticker
• Quick Installation Guide
