Product Name:

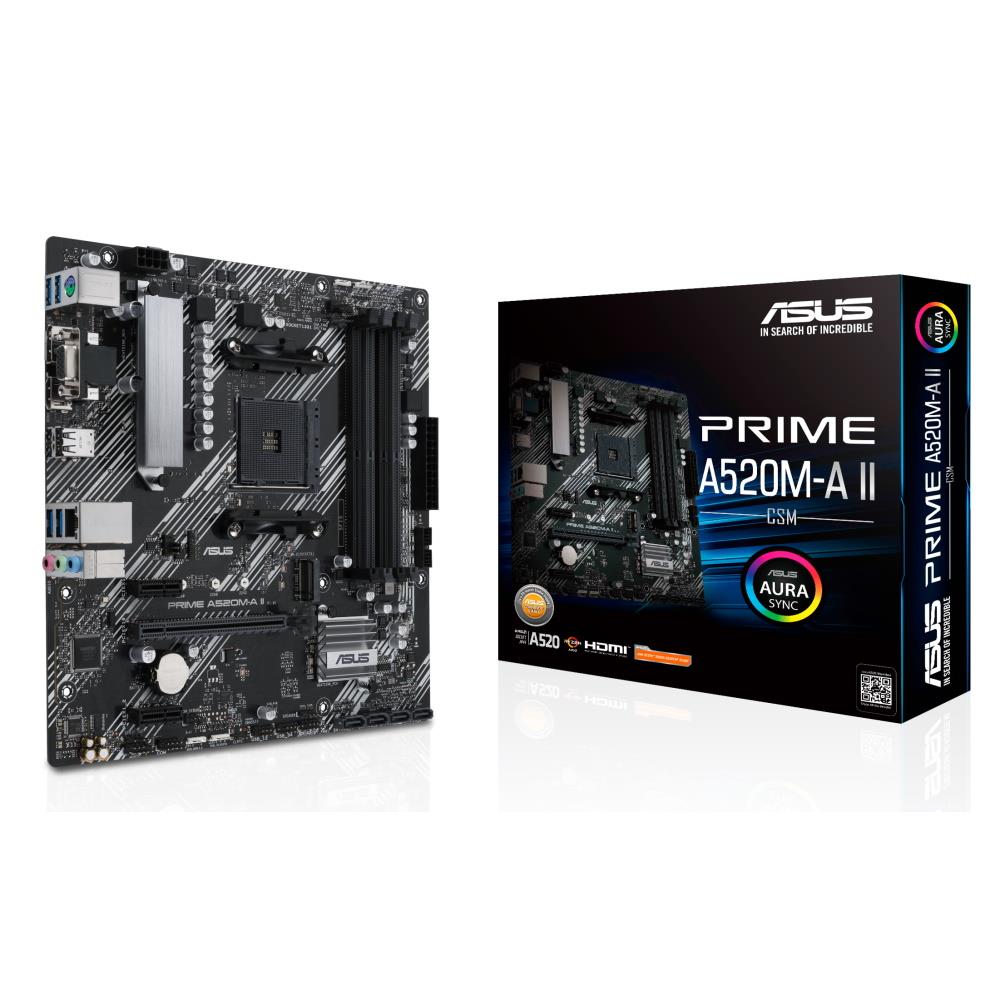

ASUS PRIME A520M-A II/CSM (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME A520M-A II/CSM

EAN:

4711081135395

UPC:

195553135399

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

A520

CPU Interface:

Socket AM4

CPU Support:

https://www.asus.com/motherboards-components/motherboards/csm/prime-a520m-a-ii-csm/helpdesk_cpu/?model2Name=PRIME-A520M-A-II-CSM

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4800 (O.C.)

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

1 x PCIe Gen 3.0 x4/SATA

On-Board LAN:

1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 2 x AURA Addressable Gen 2 header
• 2 x AURA RGB headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

27.5cm

Package Height:

5cm

Gross Weight:

0.93Kg

Special Features:

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+.
• Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A.
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
• ASUS Control Centre Express (ACCE) for easier IT endpoint management.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• 1 x Support DVD
• 1 x User manual
