Product Name:

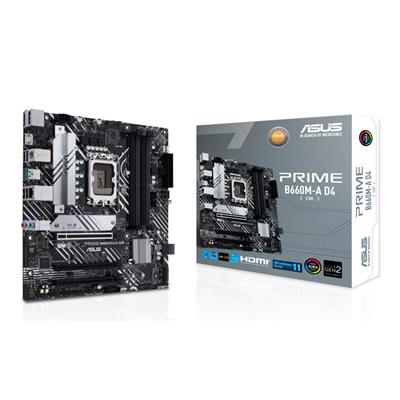

ASUS PRIME B660M-A D4-CSM (Socket 1700/B660/DDR4/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B660M-A D4-CSM

EAN:

4711081508045

UPC:

195553508049

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel B660

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/prime/prime-b660m-a-d4-csm/helpdesk_qvl_cpu/?model2Name=PRIME-B660M-A-D4-CSM

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

2

PCI Express 4.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

• 1 x Intel 1Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

2

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

3

USB 3.2 Header(s) Gen 1:

3

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 3 x AURA Addressable Gen 2 headers
• 1 x AURA RGB header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

27cm

Package Height:

5.1cm

Gross Weight:

1.05Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th & 12th Gen Intel processors.
• Ultrafast connectivity: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 Type-A and front USB 3.2 Gen 1 Type-A and Type-C.
• ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
• Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• ASUS Control Centre Express(ACCE) to make IT endpoint management easier.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x IO Shield
• 1 x M.2 Rubber Package
• 1 x M.2 SSD screw package
• Support DVD
• Manual
