Product Name:

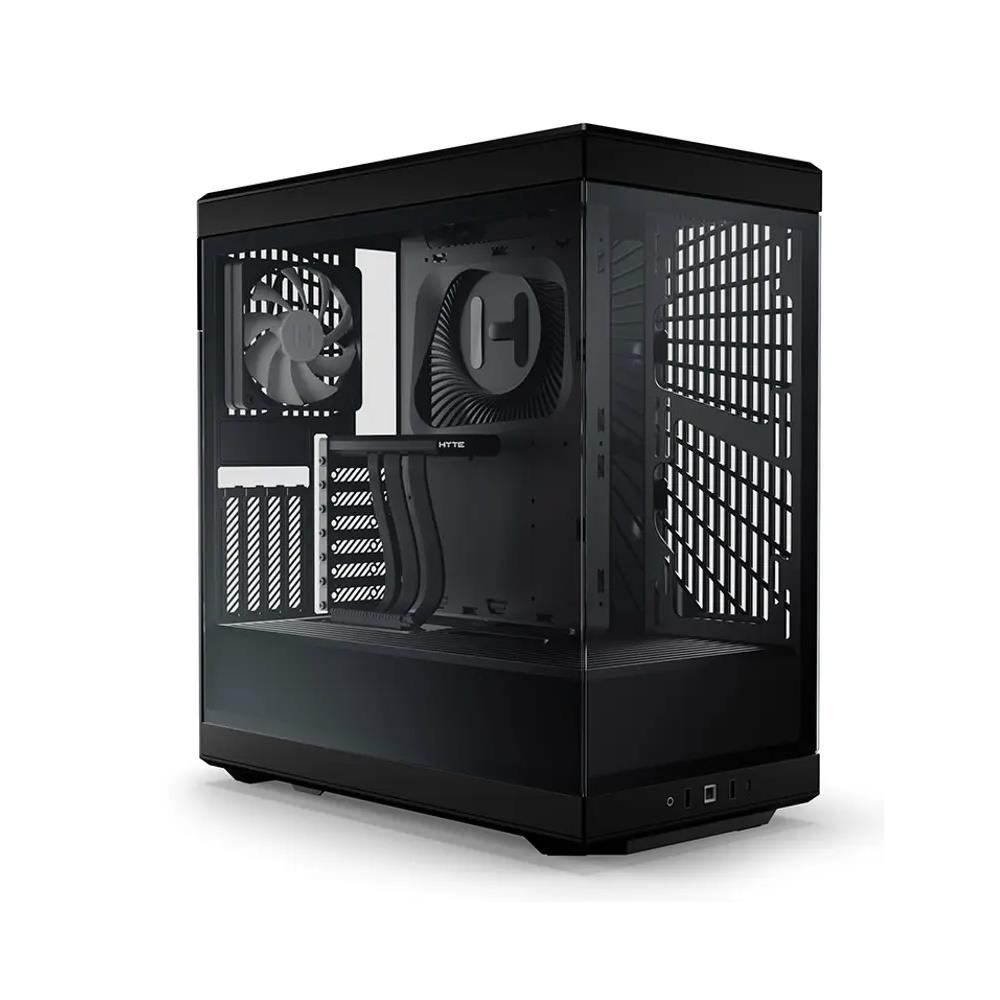

Hyte Y40 Mid Tower Case Black (ATX/M-ATX/M-ITX)

Web Address:

hyte.com

Model Number:

CS-HYTE-Y40-B

EAN:

1220000350298

Package Type:

Retail

Warranty:

3 Years

Case Type:

Mid Tower

Colour:

Black

Material Chassis:

• Tempered Glass
• Steel
• ABS

Side Panel:

Tempered Glass

Front USB 3.0 Port(s):

2

Front USB 3.2 Gen 2 Port(s) Type-C:

1

Front Audio in/out Jack(s):

1

Expansion Slots:

4 + 6 half-height

Motherboard Support:

Mini ITX / Micro ATX / ATX

Drive Bay(s):

1 x 3.5-inch HDD or 2 x 2.5-inch SSD

PSU Support:

ATX

Pre-installed Fan(s) Rear:

1 x 120mm

Pre-installed Fan(s) Bottom:

1 x 120mm

Radiator Support:

• Side: 120mm, 140mm, 240mm, 280mm up to 120mm thick
• Top: 120mm, 240mm, 360mm
• Rear: 120mm

Fan Support:

• Side: 2 x 120mm/140mm
• Top: 3x 120mm
• Rear: 1 x 120mm
• Bottom: 1x 120mm/140mm

Clearances:

• Power Supply: ATX up to 224mm in length
• Video Card Max Dimensions: 422mm length, 94mm height (80mm height or less recommended for best cooling)

Dust Filter(s):

• Top
• Side
• 2 x Bottom

Product Width:

240mm

Product Length:

439mm

Product Height:

472mm

Package Width:

52cm

Package Length:

53.5cm

Package Height:

32.8cm

Gross Weight:

9.37Kg

Special Features:

• Multi-Dimensional Design: Details connect every part into a deeply harmonic design structure. Every edge is adorned in tightly controlled bevelling for s-tier aesthetics. 2-Piece Panoramic Glass set the stage for a completely unobstructed view of your system’s performance.
• Ginormous Vertical Graphics Support: Y40 grows GPU support to 4 full slots with additional airflow space between the edge of the card and the glass. An intake fan below the power supply shroud provides fresh air upwards to the GPU to improve cooling further.
• Included Luxury PCIE 4.0 Riser Cable: A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card.
• Cooling: Y40 comes with 2x 120mm fans pre-installed, one beneath the floor and one at the rear. The side mount can fit up to a 280mm radiator with a combined thickness of up to 120mm allowing for large 60mm+ radiators to be used for custom loop configurations, and the top mount can fit up to a 360mm radiator for dual radiator setups. Y40 also brings support for large air coolers over 180mm in height, allowing for almost every CPU cooler on the market.

Package Contents:

• Y40 ATX Case
• Instructions
• PC Headset Adapter
• Accessory Box
• PCI Express Riser Cable 4.0 x16?
• Zip Ties

Keywords:

• Case
• ITX
• mATX
• ATX
• 50L
