Product Name:

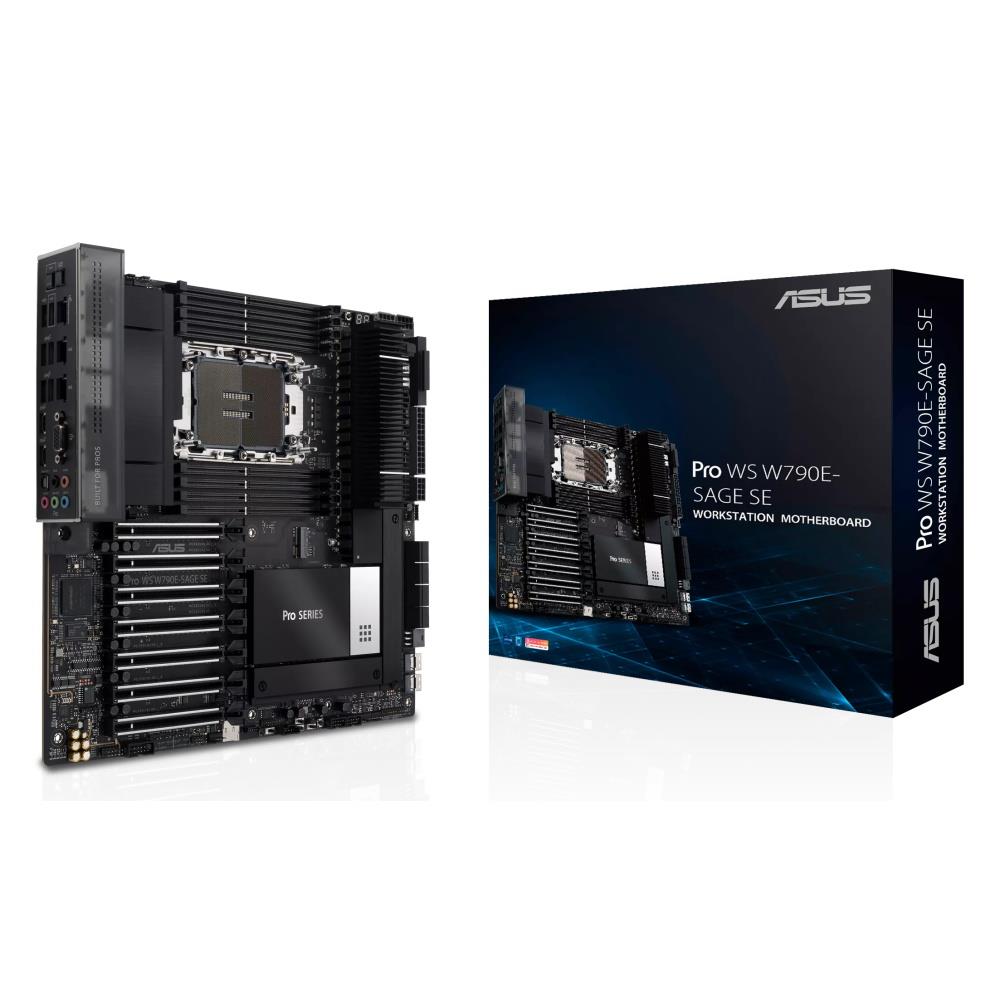

ASUS Pro WS W790E-SAGE SE Workstation (Socket 4677/W790/DDR5/S-ATA 6Gb/s/EEB)

Web Address:

www.asus.com

Model Number:

PRO WS W790E-SAGE SE

EAN:

4711387123515

UPC:

197105123519

Package Type:

Retail

Warranty:

3 Years

BIOS:

512 Mb Flash ROMUEFI AMI BIOS

Chipset:

Intel W790

CPU Interface:

Socket 4677

CPU Support:

https://www.asus.com/motherboards-components/motherboards/workstation/pro-ws-w790e-sage-se/helpdesk_qvl_cpu/?model2Name=Pro-WS-W790E-SAGE-SE

RAM Technology:

DDR5 (8 Channel)

RAM Slots:

8 x 288-pin

RAM Speeds:

Up to DDR5 6800 (O.C.)

Max. Memory Support:

2048GB

PCI Express 5.0 x16:

7

S-ATA 6Gb/s Port(s):

8

SAS Port(s):

2 x SlimSAS PCIe Gen 4.0 x4

M.2 Socket(s):

2 x PCIe Gen 5.0 x41 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel dual 10Gb Ethernet1 x Realtek 1Gb Ethernet

On-Board Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

1 x VGA port from AST2600

Back USB 3.2 Port(s) Type-A Gen 2:

4

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back VGA Port(s):

1

Back LAN Port(s):

3

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Button(s):

1 x BIOS FlashBack1 x Clear CMOS

24-pin ATX Power:

2

8-pin ATX Power:

4

PCIe Power Connector(s):

1 x 8-pin1 x 6-pin

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x Thermal Sensor Header1 x BMC Switch1 x VGA Switch1 x BMC LAN Fixed IP Switch1 x IPMI Switch2 x Q_PSU Switch2 x PSU SMBus Header1 x Front Panel Location LED Header1 x VPP_I2C Header1 x Micro SD Card Socket1 x BMC_T_SENSOR Header1 x BMC LED1 x Location LED1 x Message LED Header

Internal Button(s):

1 x ReTry1 x Safe Boot1 x Start1 x Location

Form Factor:

EEB

Product Width:

305mm

Product Length:

330mm

Package Width:

36cm

Package Length:

37.5cm

Package Height:

8cm

Gross Weight:

4.07Kg

Special Features:

Intel LGA 4677 socket: Ready for Intel Xeon W-3400 and W-2400 processors.CPU and memory overclocking: Supports for up to 2TB of ECC R-DIMM DDR5 memory (1DPC).Ultrafast connectivity: 7 PCIe 5.0 x16 slots, Dual Intel X710-AT2 10G LAN, 3 M.2, USB 3.2 Gen 2x2 Type-C and 2 SlimSAS.Server-grade IPMI remote management: Hardware and software-level with a dedicated LAN port link to AST2600 BMC controller, plus a real-time monitoring and management software – ASUS Control Centre Express.Robust power and thermal design: 14+1+1 power stages, 8-pin and 6-pin PCIe power connectors, Massive VRM, chipset, M.2 heatsinks and M.2 backplates.Trusted stability: Highly compatible with the latest technologies with solid QVL list and tested for 24/7 operation, validated for extensive compatibility.

Package Contents:

Motherboard4 x SATA 6Gb/s cables1 x Thermistor cable pack1 x VRM Fan holder1 x Q-connector1 x M.2 Rubber Package(s)1 x M.2 backplate Rubber Package(s)1 x Screw package for M.2 Key E1 x CPU guard for LGA 4677 E1A1 x CPU guard for LGA 4677 E1B1 x ACC Express Activation Key Card1 x User guide
