Product Name:

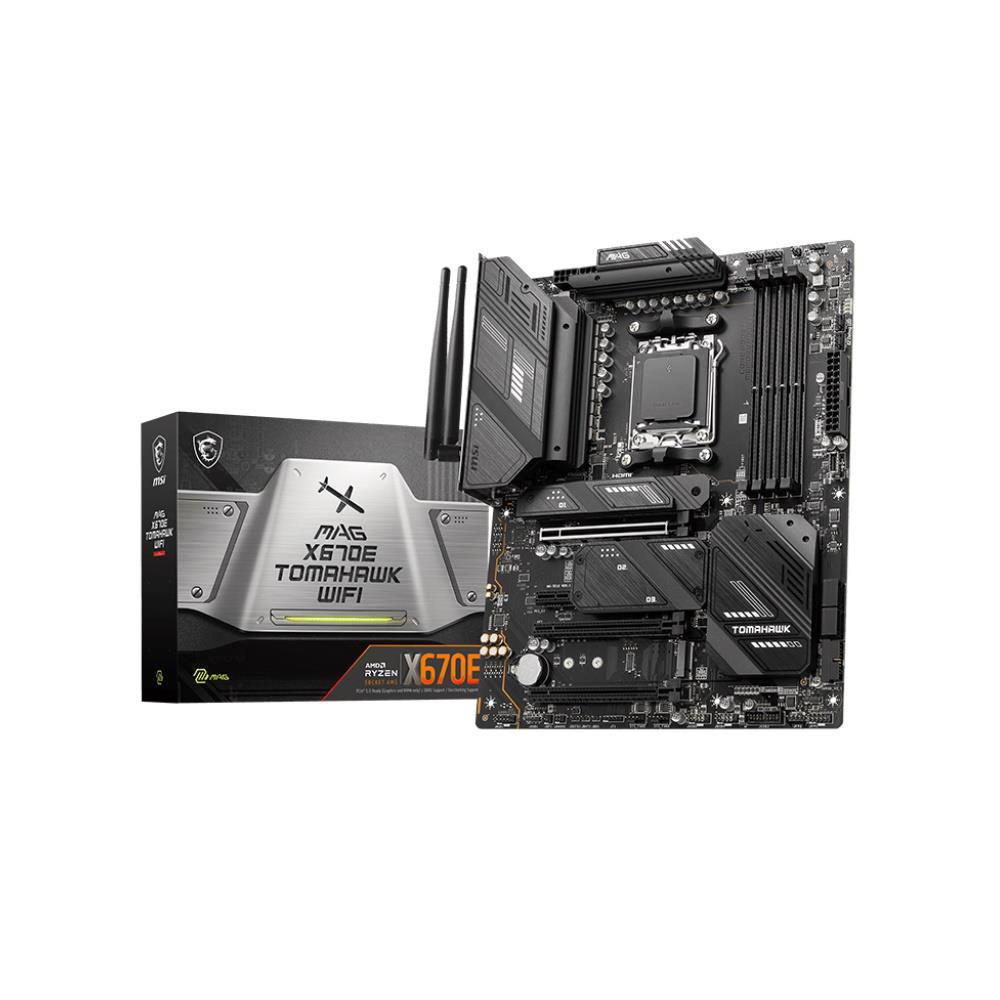

MSI MAG X670E TOMAHAWK WIFI (Socket AM5//DDR5/S-ATA 6Gb/s/ATX)

Web Address:

uk.msi.com

Model Number:

MAG X670E TOMAHAWK WIFI

EAN:

4711377076562

UPC:

824142316559

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD X670

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MAG-X670E-TOMAHAWK-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6600+ (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

2

PCI Express 5.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA II Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 3 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek RTL8125BG 2.5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
• Supports 802.11 a/b/g/n/ac/ax

Bluetooth:

v5.3

On-Board Audio:

• Realtek ALC1200 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 2:

5

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wi-Fi / Bluetooth

Back Button(s):

1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

4

USB 3.2 Header(s) Gen 1:

4

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller connector
• 2 x Addressable V2 RGB LED connector
• 2 x RGB LED connector
• 4 x EZ Debug LED

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34.4cm

Package Height:

7cm

Gross Weight:

1.96Kg

Special Features:

• Supports AMD Ryzen 7000 Series Desktop Processors.
• Supports DDR5 Memory, up to 6600+(OC) MHz.
• Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Lightning-Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience.
• High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material.

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x SATA Cable
• 3 x M.2 Clip
• Cable Stickers
• Wi-Fi Antenna
• M.2 Plate Screw
