Product Name:

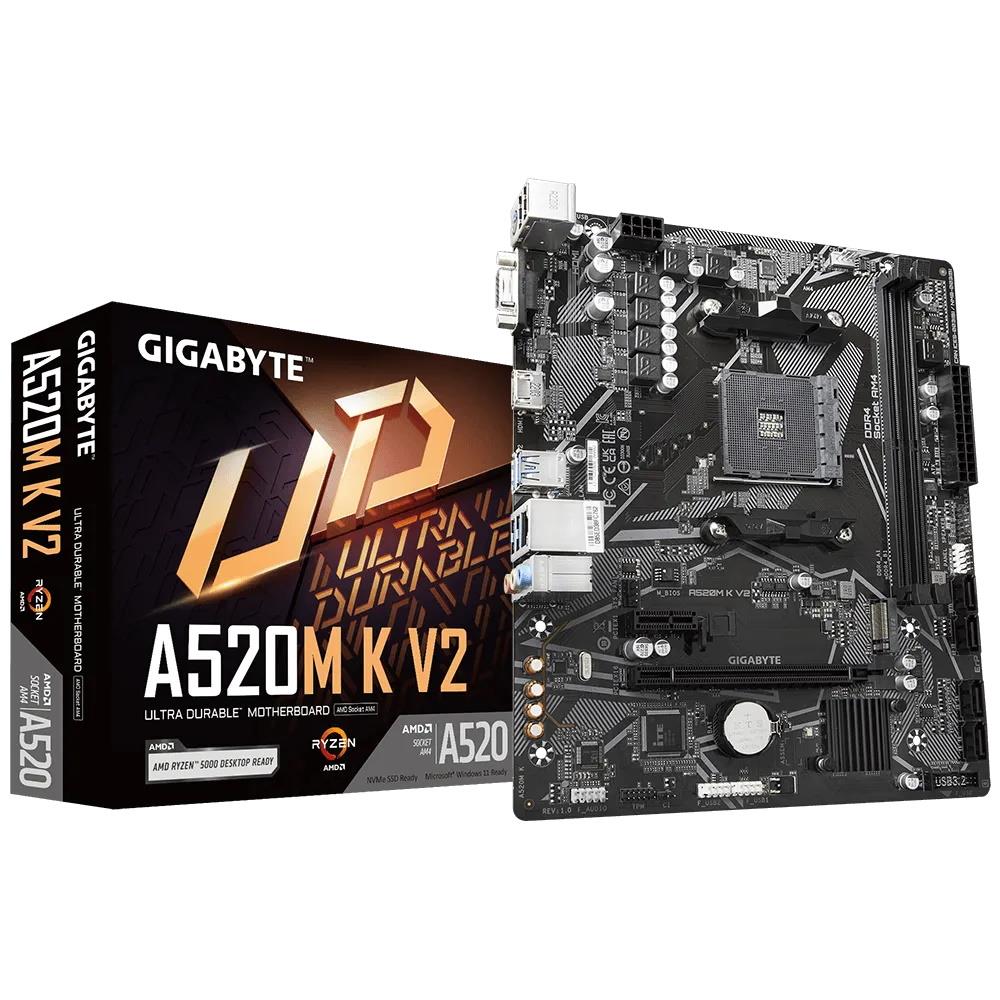

Gigabyte A520M K V2 (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

A520M K V2

EAN:

4719331852771

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/A520M-K-V2-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 5100 (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

1 x PCIe Gen 3.0 x4/SATA

On-Board LAN:

Realtek GbE LAN chip (1 Gbps/100 Mbps)

On-Board Audio:

Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channel

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

198mm

Product Length:

233mm

Package Width:

23.5cm

Package Length:

27cm

Package Height:

5.5cm

Gross Weight:

0.65Kg

Special Features:

Supports AMD Ryzen 5000 Series/Ryzen 5000 G-Series/Ryzen 4000 G-Series and Ryzen 3000 Series Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.PCIe Gen3 x4 M.2 with PCIe NVMe and SATA mode support.GbE LAN with Bandwidth Management.8-Channel HD Audio with High Quality Audio Capacitors.Rear HDMI and D-sub for Multi-display Support.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.GIGABYTE APP Centre, Simple and Easy Use.

Package Contents:

MotherboardManual1 x SATA cableIO Shield

Keywords:

MotherboardAM4DDR4M-ATXMicro ATX
