Product Name:

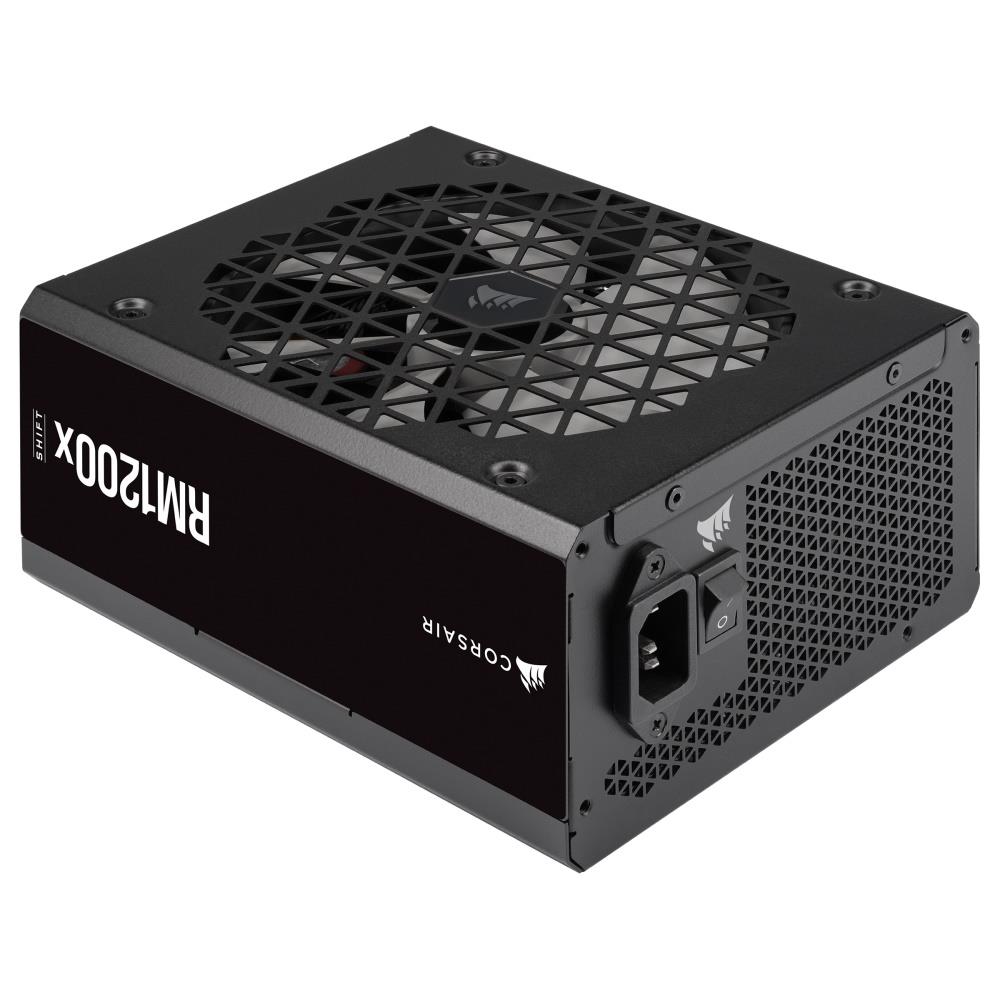

Corsair 1200W ATX Fully Modular Power Supply - RM1200x - 80 PLUS Gold - ATX 3.0/PCIe 5.0

Web Address:

www.gigabyte.com

Model Number:

CP-9020254-UK

EAN:

0840006654124

Package Type:

Retail

Warranty:

10 Years

Maximum Power:

1200W

24-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

8

12+4-pin PCI-E:

1

SATA Connector(s):

16

Peripheral Connector(s):

8

PFC:

Active

AC Input:

100-240VAC

Colour:

Black

Cable Type:

Fully Modular

Cooling System:

1 x 140mm Fan (Fluid Dynamic Bearing)

Product Width:

180mm

Product Length:

150mm

Product Height:

86mm

Product Weight:

2000g

Package Width:

21.4cm

Package Length:

30.2cm

Package Height:

12.9cm

Gross Weight:

3.92Kg

Special Features:

• Innovative Easy-Access Connection Position: Modular connections on the side of the PSU mean easier access for your cables and simpler, cleaner cable management.
• Fully Modular Micro-Fit PSU Connectors: CORSAIR Type 5 Gen 1 micro-fit PSU cables mean you only connect the cables your system needs while taking up less space.
• 140mm Fluid Dynamic Bearing Fan: Utilizes a specially calculated fan curve for high performance, low noise, and superior reliability.
• Intel ATX 3.0 Certified: Compliant with the ATX 3.0 power standard, supporting the PCIe Gen 5 platform and resisting transient power spikes.
• 100% 105°C-Rated Japanese Electrolytic Capacitors: Premium internal components deliver unwavering power delivery and long-term reliability.
• Modern Standby Compatible: Extremely fast wake-from-sleep times and better low-load efficiency.
• 80 PLUS Gold Certified: Steady power output at up to 90% efficiency, and Cybenetics-certified for lower power consumption, less noise, and cooler temperatures.
• Zero RPM Fan Mode Support: At low and medium loads the cooling fan switches off entirely for near-silent operation.
• Resonant LLC Topology with DC-to-DC Conversion: Provides clean, consistent power and enables use of more energy-efficient sleep states.

Package Contents:

• RMx Series ATX Power Supply
• UK Power Cord
• Mounting Screws
• Cable Ties
