Product Name:

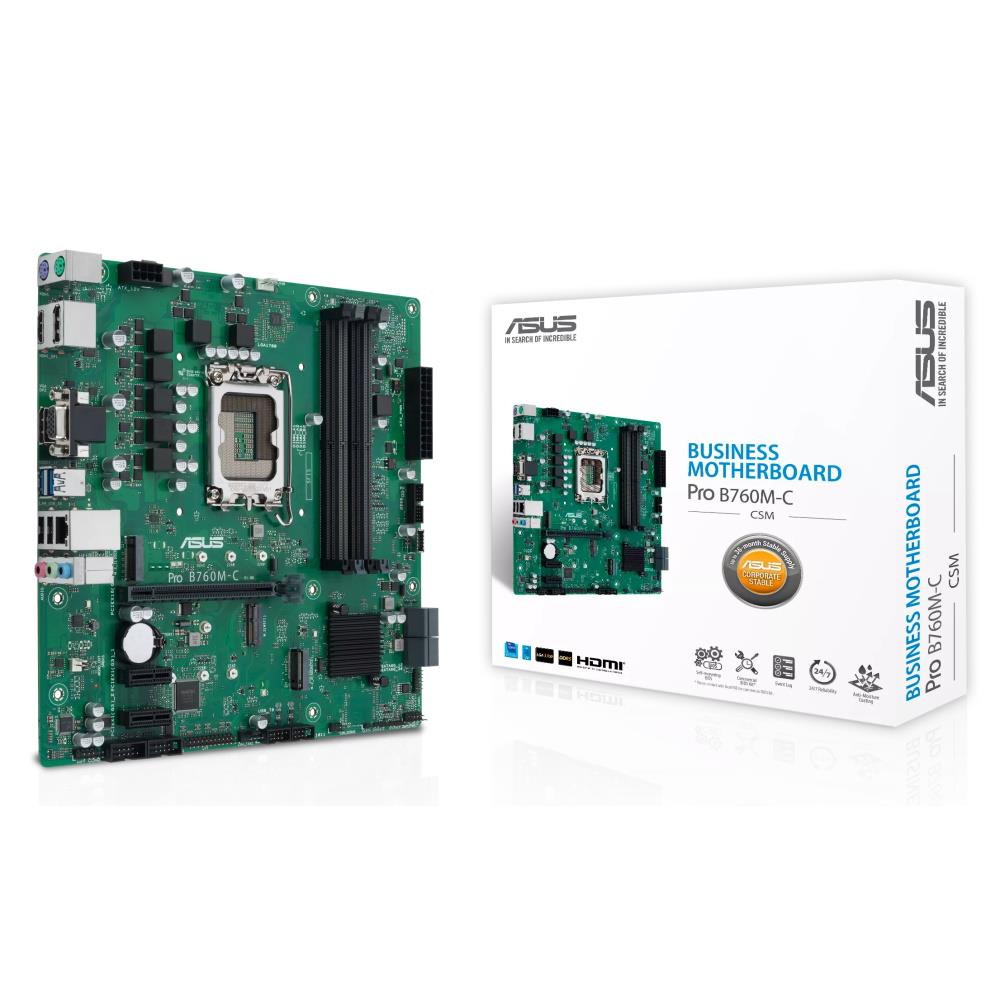

ASUS PRO B760M-C-CSM (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRO B760M-C-CSM

EAN:

4711387014691

UPC:

197105014695

Package Type:

Retail

Warranty:

3 Years

BIOS:

128Mb Flash ROM

Chipset:

Intel B760

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/business/pro-b760m-c-csm/helpdesk_knowledge/?model2Name=Pro-B760M-C-CSM

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6200 (O.C.)

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

41

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 1 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

• 1 x Intel 1Gb Ethernet
• ASUS LANGuard

On-Board Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

2

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x COM debug header
• 1 x Mono-out header (with Amp IC)
• 1 x SMBUS header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26.5cm

Package Length:

27.3cm

Package Height:

5.3cm

Gross Weight:

0.90Kg

Special Features:

• ASUS Q-Design
• ASUS EZ DIY
• Bespoke Motherboard Design and Business Focused Features

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• 1 x IO Shield
• 1 x Screw package for M.2 SSD
• 1 x Screw package for M.2 Key E
• 1 x ACC Express Activation Key Card
• 1 x User guide
