Product Name:

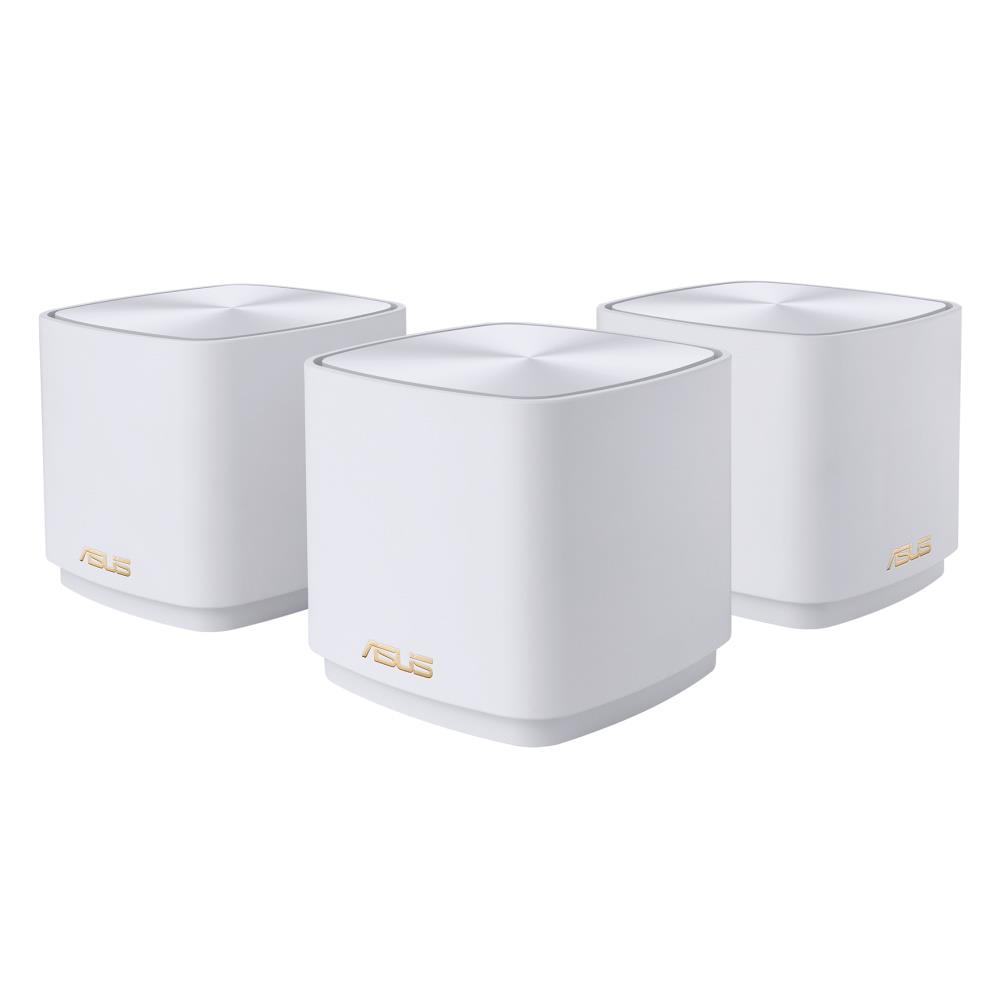

ASUS ZenWiFi XD5 WiFi 6 AX3000 Mesh System - 3 Pack - White

Web Address:

www.asus.com

Model Number:

XD5 (W-3-PK)

EAN:

4711081281177

UPC:

195553281171

Package Type:

Retail

Warranty:

3 Years

Device Type:

Mesh

Ports:

• LAN/WAN: 1 x RJ-45
• LAN: 1 x RJ-45

Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• IEEE 802.11n
• IEEE 802.11ac
• IEEE 802.11ax
• IPv4
• IPv6

Transfer Rate:

• 802.11a: up to 54 Mbps
• 802.11b: up to 11 Mbps
• 802.11g: up to 54 Mbps
• WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps

Network Architecture Types:

Infrastructure

Antenna Type:

2 x Internal Dual-band

Frequency Range:

2.4GHz/5GHz

Security:

• Operating system: ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter: 64
• Maximum Firewall network service filter: 32
• Maximum Firewall URL filter: 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log

VPN Support:

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP

LED indicators:

1 x Power

Button:

• WPS
• Reset

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output: 12V with max. 1.5A current

Package Width:

20.5cm

Package Length:

35.5cm

Package Height:

10.7cm

Gross Weight:

1.84Kg

Special Features:

• WiFi Coverage Everywhere. Always Secure.
• Whole-home Coverage.
• True 8K Streaming.
• Explore ultimate WiFi 6 performance.
• Flexible Network Naming.
• Make the Internet a Safer Place for Everyone.
• Smart Looks for Smart Homes.
• Space-saving and Great Design.
• AiMesh Technology.

Package Contents:

• 3 x ZenWiFi XD5
• 3 x RJ45 Ethernet Cable
• 3 x Power Adapter
• 3 x Quick Start Guide
• Warranty Card
• Screw Pack

Keywords:

• Mesh
• Networking
• WiFi 6
• AX3000
• MIMO
