Product Name:

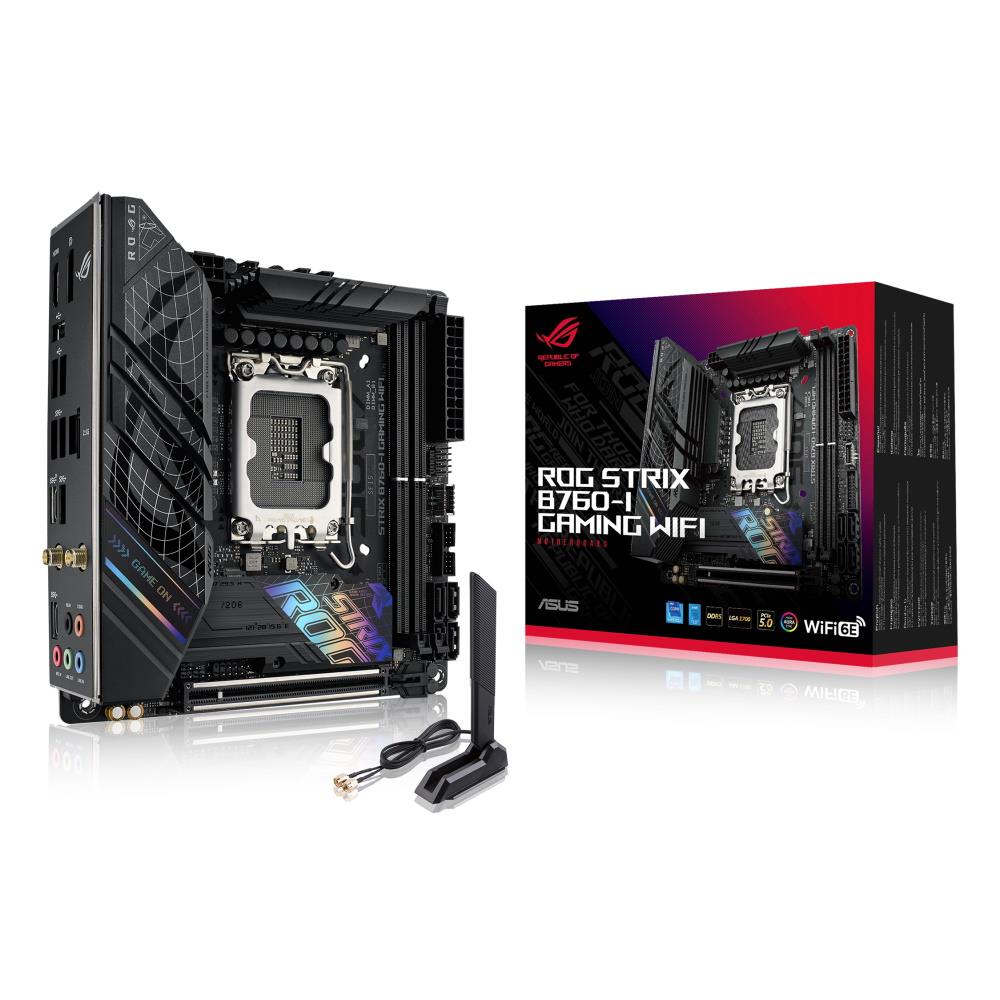

ASUS ROG STRIX B760-I GAMING WIFI (Socket 1700/B760/DDR5/S-ATA 6Gb/s/Mini ITX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B760-I GAMING WIFI

EAN:

4711081997658

UPC:

195553997652

Package Type:

Retail

Warranty:

3 Years

BIOS:

128 Mb Flash ROMUEFI AMI BIOS

Chipset:

Intel B760

CPU Interface:

Socket 1700

CPU Support:

https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-i-gaming-wifi-model/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 7600 (O.C.)

Max. Memory Support:

64GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel 2.5Gb EthernetASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

3

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-C Gen 1:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back Other Port(s):

1 x Wi-Fi Module

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

1 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x Thermal Sensor header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.5cm

Package Length:

23cm

Package Height:

9.5cm

Gross Weight:

1.19Kg

Special Features:

Extreme Engine Digi+ASUS Q-Design ASUS Thermal SolutionASUS EZ DIYAURA Sync

Package Contents:

Motherboard2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable1 x Panel cable1 x Thermal pad for M.21 x ASUS Wi-Fi moving antennas 1 x Cable ties package1 x M.2 Rubber Package2 x Screw packages for M.2 SSD1 x M.2 bracket1 x ROG key chain1 x ROG STRIX stickers1 x ROG STRIX thank you card1 x User manual

Keywords:

Motherboard1700B760DDR5WiFiBluetoothMini-ITX
