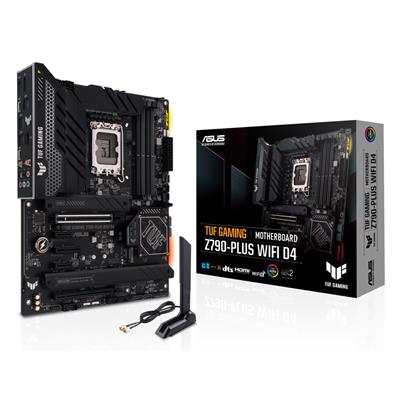

Product Name:

ASUS TUF GAMING Z790-PLUS D4 (Socket 1700/Z790/DDR4/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING Z790-PLUS D4

EAN:

4711081944973

UPC:

195553944977

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 192 (128+64) Mb Flash ROM
• UEFI AMI BIOS

Chipset:

Intel Z790

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-Z790-PLUS-D4/HelpDesk_QVL_CPU/

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 5333 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

• 1 x Intel 2.5Gb Ethernet
• TUF LANGuard

On-Board Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

24-pin ATX Power:

1

8-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 Headers
• 1 x Aura RGB Header
• 1 x Clear CMOS Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

6.5cm

Gross Weight:

1.87Kg

Special Features:

• Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors.
• Enhanced power solution: 16+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery.
• Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support.
• Made for online gaming: Intel 2.5 Gb Ethernet and TUF LANGuard.
• Two-Way AI Noise Cancelation: Reduces background noise for crystal-clear communication in games or video conferences.
• AI Cooling II: Balances thermals and acoustics of any build with a single click.
• Comprehensive cooling: Enlarged VRM and PCH heatsinks, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate.
• Aura Sync RGB effects: Stylish edge lighting design, addressable RGB headers and RGB strip header support.
• PC DIY design: PCIe Slot Q-Release, M.2 Q-Latch, Q-LED and SafeSlot.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x TUF GAMING Sticker
• 2 x M.2 Rubber Packages
• 1 x Screw Package for M.2 SSD
• 1 x TUF Certification Card
• 1 x User Guide
