Product Name:

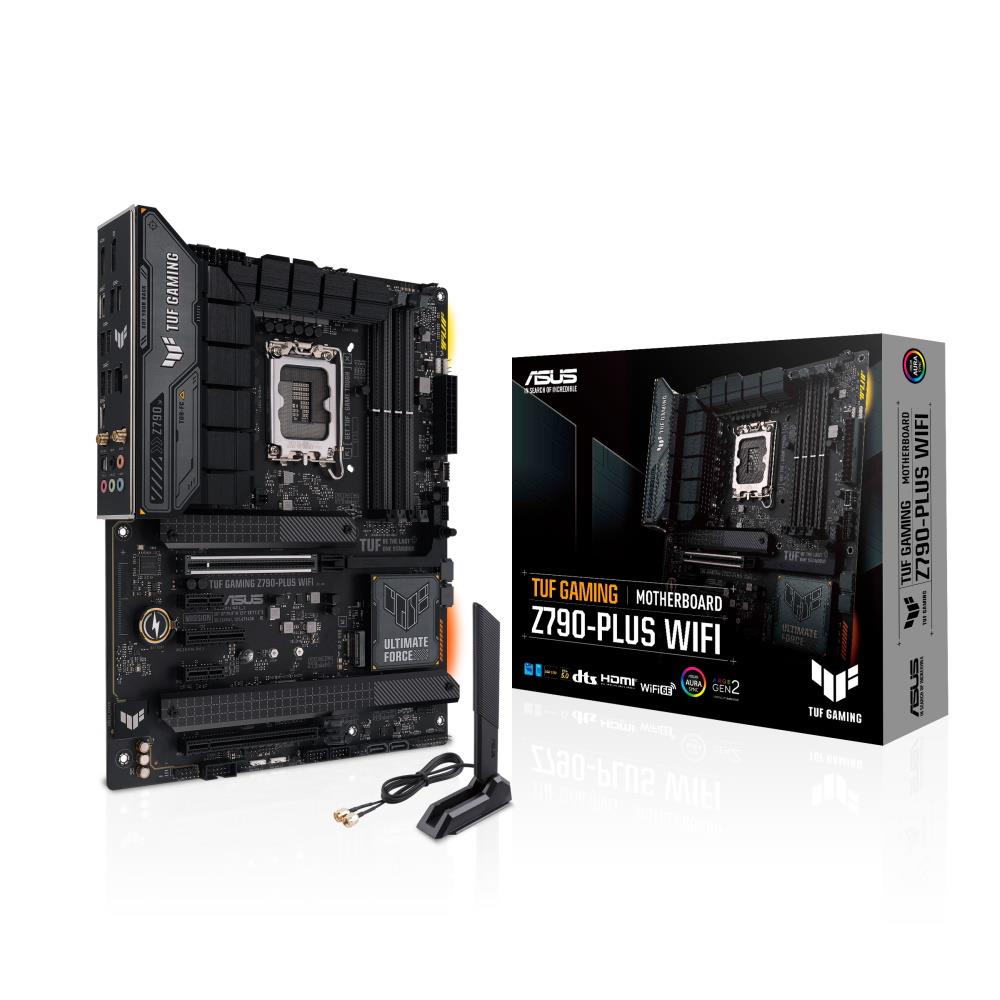

ASUS TUF GAMING Z790-PLUS WIFI (Socket 1700/Z790/DDR5/S-ATA 6Gb/s/ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING Z790-PLUS WIFI

EAN:

4711387014509

UPC:

197105014503

Package Type:

Retail

Warranty:

3 Years

Chipset:

Intel Z790

CPU Interface:

Socket 1700

CPU Support:

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-plus-wifi/helpdesk_qvl_cpu/

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 7200+ (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/5/10

M.2 Socket(s):

• 3 x PCIe Gen 4.0 x4
• 1 x PCIe Gen 4.0 x4/SATA

On-Board LAN:

1 x Intel 2.5Gb Ethernet

Wireless NIC:

Wi-Fi 6

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.3

On-Board Audio:

Realtek S1200A 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 Headers
• 1 x Aura RGB Header

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

35.5cm

Package Height:

7cm

Gross Weight:

2.00Kg

Special Features:

• 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks.
• USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 2 Type-C header.
• PCIe 5.0 for graphics cards.
• PCIe Q-Release.
• 7200+ MT/s, AEMP II.
• WiFi 6E.
• 2.5 Gb Ethernet
• AI Cooling II.
• Two-Way AI Noise Cancelation.

Package Contents:

• 1 x TUF GAMING Z790-PLUS WIFI motherboard
• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x TUF GAMING sticker
• 2 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card
• 1 x User guide
