Product Name:

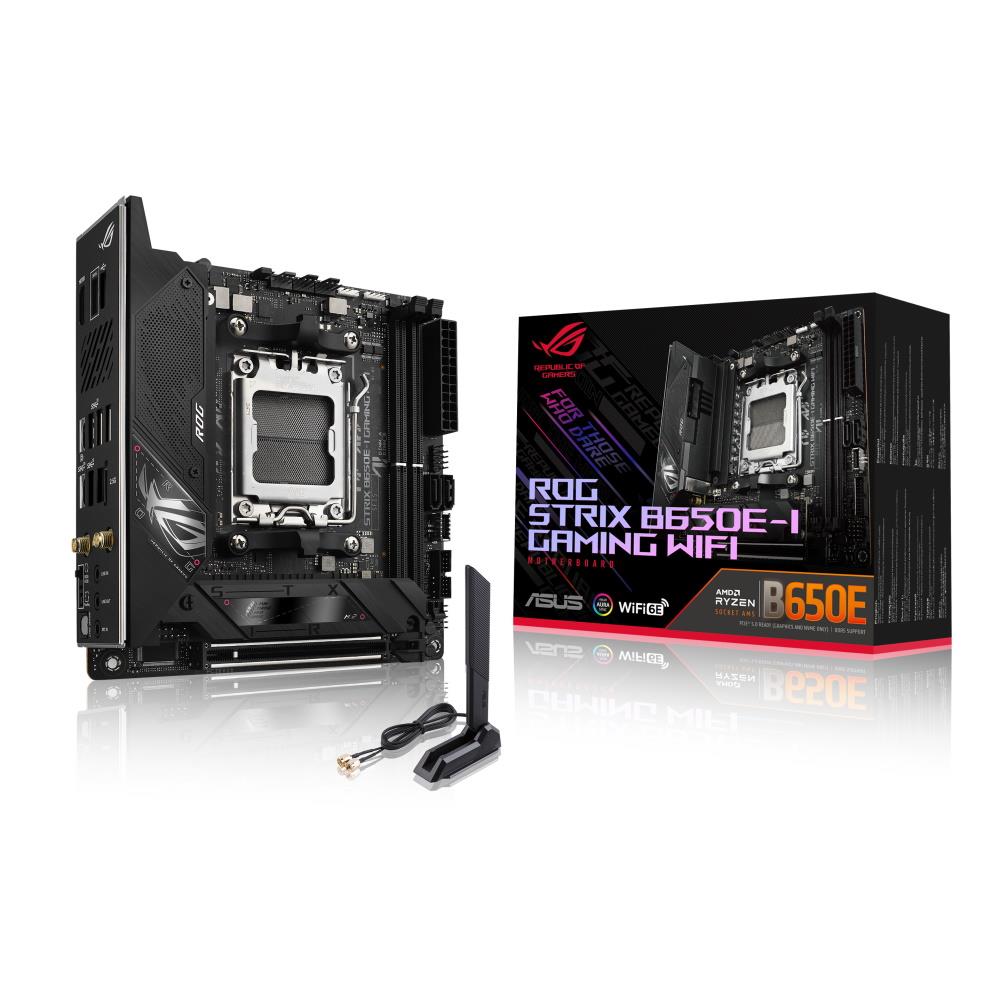

ASUS ROG STRIX B650E-I GAMING WIFI (Socket AM5/B650/DDR5/S-ATA 6GB/s/Mini ITX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B650E-I GAMING WIFI

EAN:

4711081957881

UPC:

195553957885

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROMUEFI AMI BIOS

Chipset:

AMD B650

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR5 6400+ (O.C.)

Max. Memory Support:

64GB

PCI Express 5.0 x16:

1

S-ATA 6Gb/s Port(s):

2

RAID:

Raid 0/1

M.2 Socket(s):

1 x PCIe Gen 5.0 x41 x PCIe Gen 4.0 x4

On-Board LAN:

1 x Intel 2.5Gb EthernetASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.2

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 2:

4

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

1 x BIOS FlashBack1 x FlexKey

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Internal Other Port(s):

1 x Addressable Gen 2 Header1 x AURA RGB Header1 x Clear CMOS Header1 x CPU Over Voltage Jumper1 x Thermal Sensor Header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

18.2cm

Package Length:

22.2cm

Package Height:

9.2cm

Gross Weight:

1.32Kg

Special Features:

Extreme Engine Digi+ASUS Q-Design ASUS Thermal SolutionASUS EZ DIYAURA Sync

Package Contents:

Motherboard2 x SATA 6Gb/s Cables 1 x ROG USB2.0 Splitter Cable1 x Panel Cable1 x Thermal Pad for M.21 x ASUS Wi-Fi Moving Antennas 1 x Cable Ties Package1 x M.2 Bracket1 x M.2 SSD Screw Package1 x M.2 Q-Latch Package for M.2 Backplate1 x ROG Key Chain1 x ROG Strix Sticker1 x ROG Strix Thank You Card1 x Rubber Package for M.2 Backplate1 x User Guide

Keywords:

MotherboardAM5B650DDR5WiFiBluetooth
