Product Name:

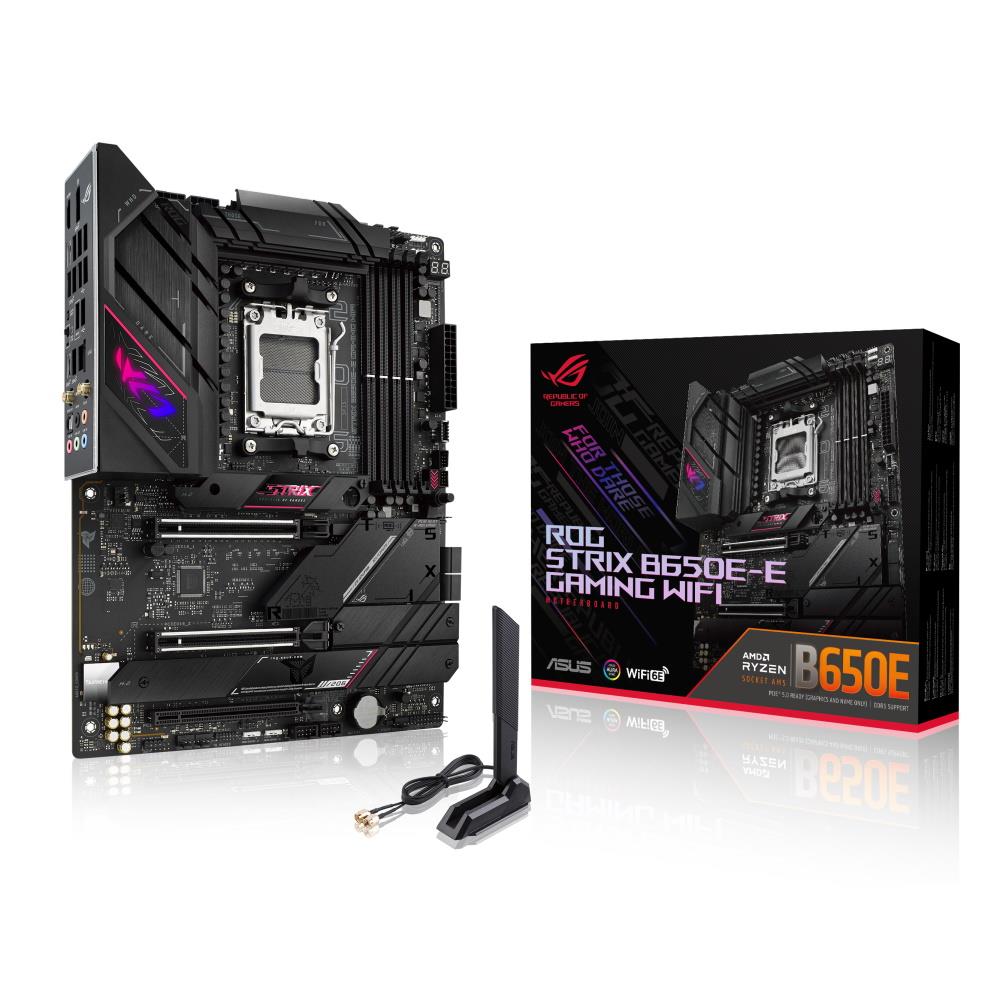

ASUS ROG STRIX B650E-E GAMING WIFI (Socket AM5/B650/DDR5/S-ATA 6GB/s/ATX)

Web Address:

www.asus.com

Model Number:

ROG STRIX B650E-E GAMING WIFI

EAN:

4711081906209

UPC:

195553906203

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B650

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 5.0 x4

On-Board LAN:

• 1 x Intel 2.5Gb Ethernet
• ASUS LANGuard

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth:

v5.2

On-Board Audio:

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 2:

6

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

1 x Wi-Fi Module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Thunderbolt Header(s):

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 Headers
• 1 x AURA RGB Header
• 1 x CPU Over Voltage Jumper
• 1 x Thermal Sensor Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.3cm

Package Length:

34.5cm

Package Height:

7.5cm

Gross Weight:

2.33Kg

Special Features:

• Extreme Engine Digi+
• ASUS Q-Design
• ASUS Thermal Solution
• ASUS EZ DIY
• AURA Sync

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x Thermal Pad for M.2
• 1 x ASUS Wi-Fi Moving Antennas
• 1 x Cable Ties Pack
• 1 x M.2 Q-Latch Package
• 1 x ROG Key Chain
• 1 x ROG Strix Stickers
• 1 x ROG Strix Thank You Card
• 2 x Rubber Packages for M.2
• 1 x User Guide
