Product Name:

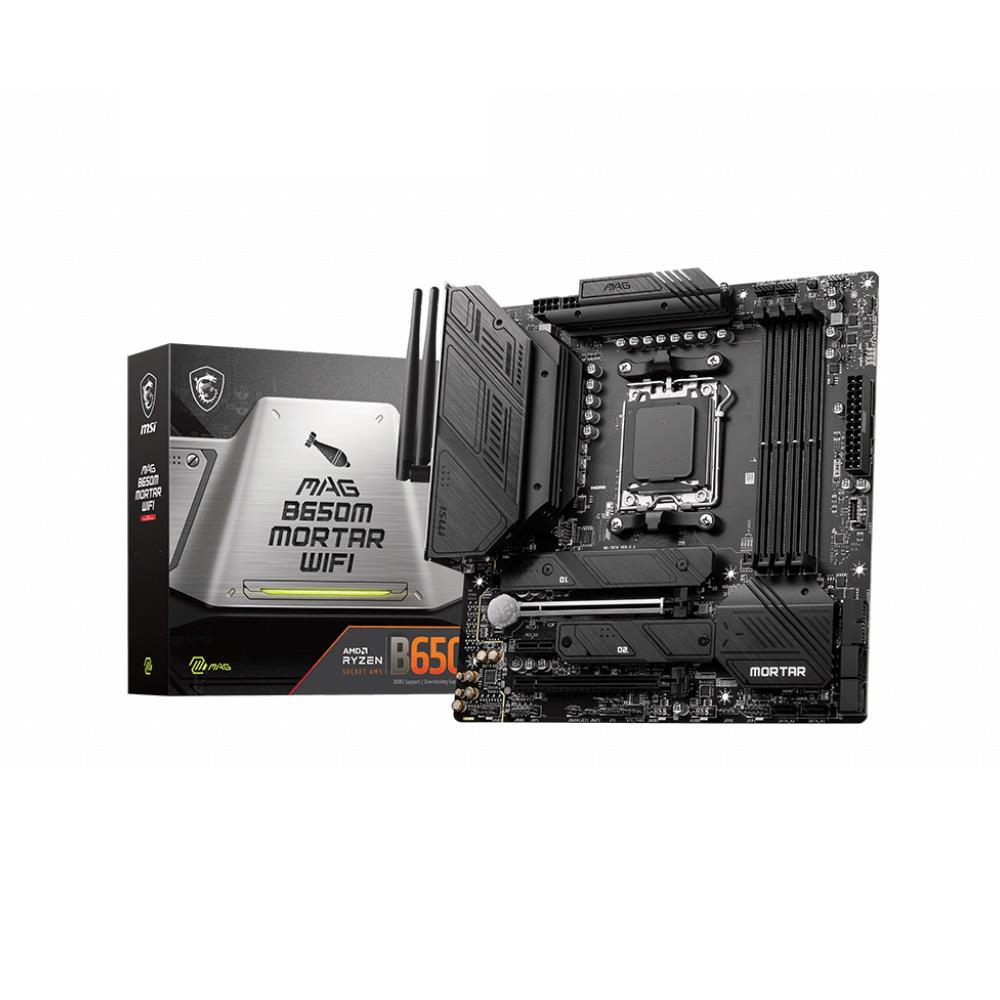

MSI MAG B650M MORTAR WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/Micro ATX)

Web Address:

uk.msi.com

Model Number:

MAG B650M MORTAR WIFI

EAN:

4711377010207

UPC:

824142301081

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD B650

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MAG-B650M-MORTAR-WIFI/support#cpu

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6400+ (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

2

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

2 x PCIe Gen 4.0 x4

On-Board LAN:

Realtek RTL8125B 2.5Gbps LAN

Wireless NIC:

Wi-Fi 6E

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports MU-MIMO TX/RX
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
• Supports 802.11 a/b/g/n/ac/ax

Bluetooth:

v5.2

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel High Performance Audio
• Supports S/PDIF output
• Supports up to 32-Bit/384 kHz playback on front panel

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wi-Fi / Bluetooth Antenna

Back Button(s):

1 x Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

4

USB 3.2 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x Tuning Controller Connector
• 2 x Addressable V2 RGB LED Connector
• 2 x RGB LED Connector

Form Factor:

Micro ATX

Product Width:

243.84mm

Product Length:

243.84mm

Package Width:

27cm

Package Length:

28.5cm

Package Height:

7cm

Gross Weight:

1.61Kg

Special Features:

• Supports AMD Ryzen 7000 Series Desktop Processors.
• Supports DDR5 Memory, up to 6400+(OC) MHz.
• Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works.
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs.
• Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• Quick Installation Guide
• 2 x SATA Cables
• EZ M.2 Clips
• Cable Sticker
• Wi-Fi Antenna
