Product Name:

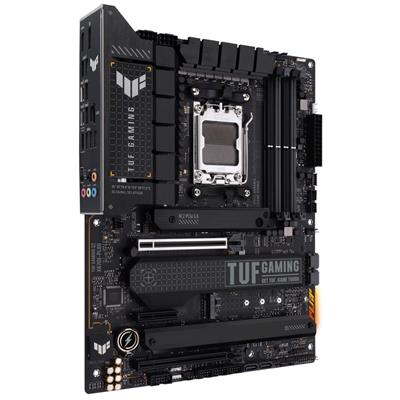

ASUS TUF GAMING X670E-PLUS (Socket AM5/X670/DDR5/S-ATA 600/ATX)

Web Address:

www.asus.com

Model Number:

C-TUF GAMING X670E-PLUS

EAN:

4711081905608

UPC:

195553905602

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD X670

CPU Interface:

Socket AM5

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR5 6400 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 5.0 x16:

1

PCI Express 4.0 x4:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

• 1 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4
• 1 x SATA/PCIe 3.0 x4

On-Board LAN:

1 x Realtek 2.5Gb Ethernet

On-Board Audio:

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

5

Back USB 3.2 Port(s) Type-A Gen 2:

3

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

3

USB 3.2 Header(s) Gen 1:

1

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 3 x Addressable Gen 2 Headers
• 1 x AURA RGB Header
• 1 x Clear CMOS Header
• 1 x COM Port Header
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor Header
• 1 x Thunderbolt Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.3cm

Package Length:

34.3cm

Package Height:

6.8cm

Gross Weight:

1.94Kg

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 2 x Rubber Packages for M.2
• 2 x Screw Packages for M.2 SSD
• 1 x Support Disk
• 1 x TUF Certification Card
• 1 x User Guide
