Product Name:

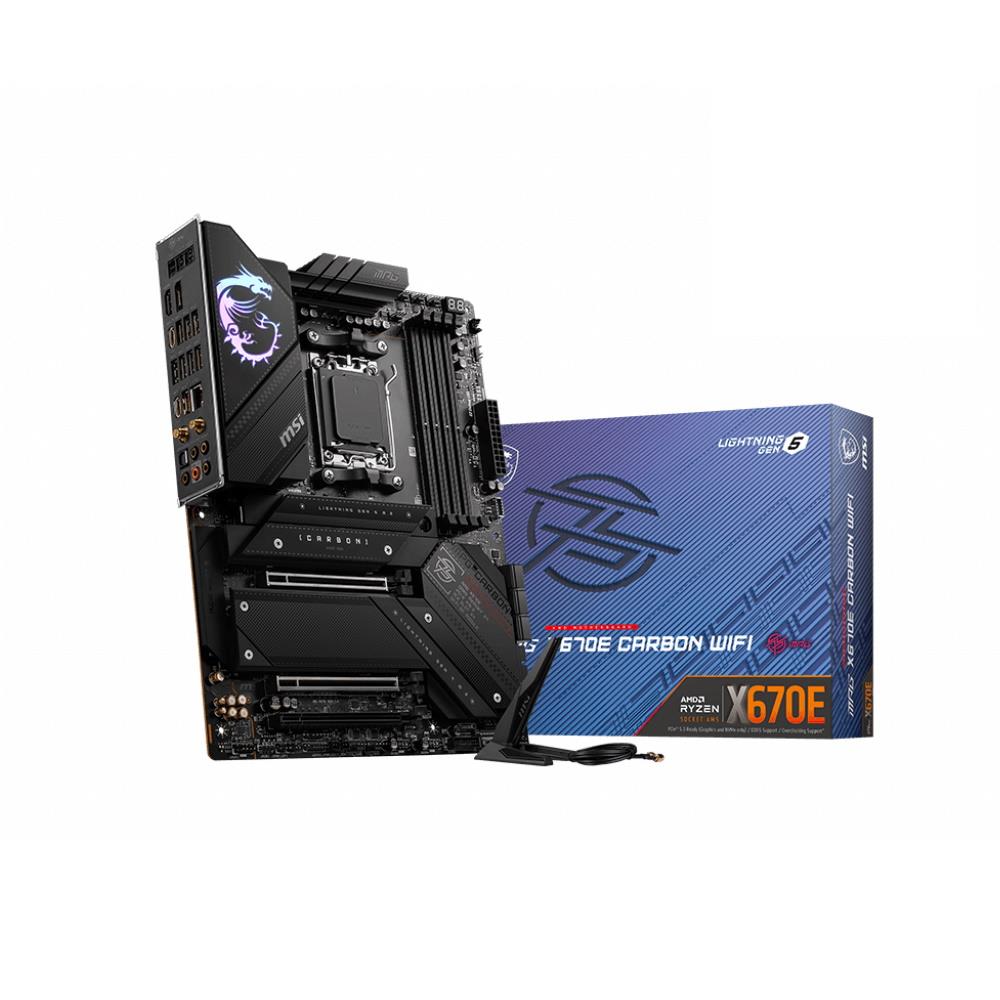

MSI MPG X670E CARBON WIFI (Socket AM5/X670/DDR5/S-ATA 600/ATX)

Web Address:

uk.msi.com

Model Number:

MPG X670E CARBON WIFI

EAN:

4711377004879

UPC:

824142299333

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD X670

CPU Interface:

Socket AM5

CPU Support:

https://www.msi.com/Motherboard/MPG-X670E-CARBON-WIFI/support

RAM Technology:

DDR5 (Dual Channel)

RAM Slots:

4 x 288-pin

Max. Memory Support:

128GB

PCI Express 5.0 x16:

3

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

• 2 x PCIe Gen 5.0 x4
• 2 x PCIe Gen 4.0 x4

LAN Speed:

Realtek RTL8125BG 2.5Gbps LAN

Wireless NIC:

WiFi 6

Wireless Technology:

• The Wireless module is pre-installed in the M.2 (Key-E) slot
• Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
• Supports 802.11 a/ b/ g/ n/ ac/ ax

Bluetooth:

v5.2

On-Board Audio:

• Realtek ALC4080 Codec
• 7.1-Channel High Definition Audio
• Supports S/PDIF output

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 2:

6

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2x2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Other Port(s):

Wireless / Bluetooth

Back Button(s):

• 1 x Clear CMOS
• 1 x Flash BIOS
• 1 x Smart

24-pin ATX Power:

1

8-pin ATX Power:

2

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

2

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

Internal Other Port(s):

• 1 x Thermal Sensor connectors
• 1 x Tuning Controller connector
• 2 x Addressable V2 RGB LED connector
• 1 x RGB LED connector

Form Factor:

Standard ATX

Product Width:

243.84mm

Product Length:

304.8mm

Package Width:

27cm

Package Length:

34.5cm

Package Height:

7cm

Gross Weight:

2.48Kg

Special Features:

• Supports AMD Ryzen 7000 Series Desktop Processors.
• Supports DDR5 Memory.
• Enhanced Power Design: 18+2+1 Duet Rail Power System, Dual 8-pin CPU power connectors, Core Boost, Memory Boost.
• Premium Thermal Solution: Extended Heatsink with Direct Touched Heat-pipe, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and Double-sided M.2 Shield Frozr are built for high performance system and non-stop gaming experience.
• High Quality PCB: 8-layer PCB made by 2oz thickened copper and server grade level material.
• DIY Friendly Design: Patented Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor.
• Lightning-Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, USB 3.2 Gen 2x2.
• 2.5G LAN and Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection.
• MYSTIC LIGHT: 16.8 million colours / fancy lighting effects controlled in one click. MYSTIC LIGHT SYNC supports latest ARGB Gen2 strips, RGB strips and Ambient devices.
• AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience.

Package Contents:

• Motherboard
• WiFi Antenna
• USB Drive
• EZ M.2 Clips
• 2 x SATA Cables
• 1 to 2 RGB LED Extension Y Cable
• Rainbow RGB LED Extension Cable
• Cable Stickers
• Quick Installation Guide
