Product Name:

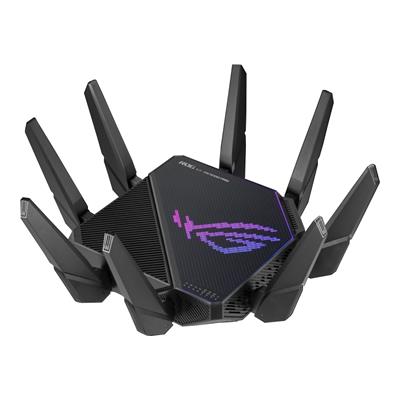

ASUS ROG Rapture GT-AX11000 PRO Wireless Router - WiFi 6 - AX11000

Web Address:

www.asus.com

Model Number:

A-GT-AX11000 PRO

EAN:

4711081264361

UPC:

195553264365

Package Type:

Retail

Warranty:

3 Years

Device Type:

Wireless Router

Ports:

• 1 x 2.5 Gigabit WAN Port
• 1 x 10 Gigabit WAN/LAN Port
• 4 x Gigabit LAN Ports
• 1 x USB 3.2 Gen 1 Port
• 1 x USB 2.0 Port

Standards:

• IEEE 802.11ax
• IPv4
• IPv6

Transfer Rate:

• 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
• 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
• 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Network Architecture Types:

Infrastructure

Memory:

• 256MB NAND flash
• 1GB DDR4 RAM

Antenna Type:

8 x External (non-detachable)

Frequency Range:

• 2.4GHz
• 5GHz-1
• 5GHz-2

Security:

• WPA3 Personal
• WPA2 Personal
• WPA Personal
• WPA Enterprise
• WPA2 Enterprise
• Open System

Management:

• Operating mode: Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
• Operating system: ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter: 64
• Maximum Firewall network service filter: 32
• Maximum Firewall URL filter: 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log

VPN Support:

• VPN Client L2PT
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Fusion

LED indicators:

• 1 x Power
• 1 x 2.4G
• 1 x 5GHz-1
• 1 x 5GHz-2
• 1 x WPS
• 1 x 10GE
• 1 x LAN
• 1 x WAN

Button:

• WPS Button
• LED Button
• Reset Button
• Power Switch

Input Power:

• AC Input: 110V-240V(50-60Hz)
• DC Output; 19 V with max. 3.42 A : 19.5 V with max. 3.33 A

Product Weight:

2180g

Package Width:

39.5cm

Package Length:

41.5cm

Package Height:

14cm

Gross Weight:

4.07Kg

Special Features:

• High-efficiency WiFi 6 - Ultrafast WiFi 6 tri-band boosts speed up to 11,000 Mbps, with 160 MHz channels for better efficiency and throughput.
• Expanded coverage - Exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
• Flexible networking ports - One 2.5G port and one 10G port can be configured for either WAN or LAN operation.
• Extreme quad-core CPU power - High-performance WiFi chipsets and 64-bit 2.0 GHz quad-core CPU take wireless signal processing to the next level.
• Triple-level game acceleration - Online gaming gets network prioritization every step of the way, from PC to game server.
• Expanded UNII4 spectrum - Additional high-power 160 MHz channel in 5 GHz increases backhaul capacity of the Mesh network.

Package Contents:

• GT-AX11000 Pro WiFi Gaming Router
• RJ-45 Cable
• UK Power Adapter
• Quick Start Guide
• Warranty Card

Keywords:

• Router
• Wireless
• AX11000
• WIFI 6
