Product Name:

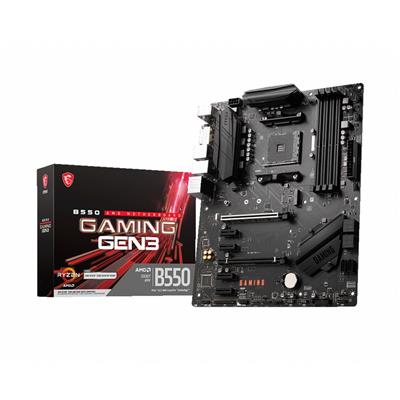

MSI B550 GAMING GEN3 (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

uk.msi.com

Model Number:

C-B550 GAMING GEN3

EAN:

4719072970321

UPC:

824142283851

Package Type:

Retail

Warranty:

1 Year

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/B550-GAMING-GEN3/support#cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4400 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

2

PCI Express 2.0 x1:

4

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

1 x SATA/PCIe 3.0 x4

On-Board LAN:

1 x Realtek RTL8111H LAN controller

On-Board Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

2

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

6

Back Button(s):

Flash BIOS

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

Parallel Port Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

34.6cm

Package Height:

6.5cm

Gross Weight:

1.29Kg

Special Features:

• Supports AMD Ryzen 5000 and 3000 Series desktop processors (not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G) and AMD Ryzen 4000 G-Series desktop processors.
• Supports DDR4 Memory, up to 4400(OC) MHz.
• Lightning-Fast Game experience: Turbo M.2 Gen3 x4, AMD Turbo USB 3.2 GEN 2.
• Enhanced Power Design: Core Boost, DDR4 Boost.
• MULTI-GPU: With STEEL ARMOR PCI-E slots. Supports AMD Crossfire.
• Flash BIOS Button with Optmized ClearCMOS Function: Simply use a USB key to flash any BIOS within seconds. Restore the BIOS to the default settings without any additional actions.
• Audio Boost: Reward your ears with studio grade sound quality.

Package Contents:

• Motherboard
• Quick installation guide
• 2 x SATA 6Gb/s cables
• 1 x Case badge
• 1 x I/O Shielding
• 1 x M.2 screw
• Product Registration Card
