Product Name:

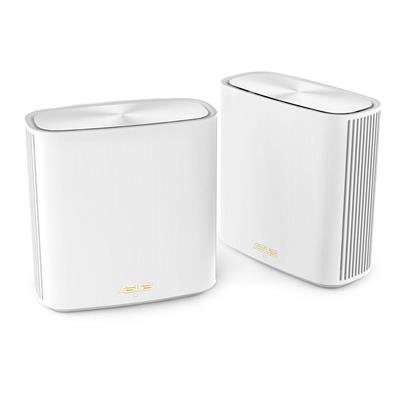

ASUS ZenWiFi XD6S WiFi 6 Mesh System - AX5400 - 2 Pack - White

Web Address:

www.asus.com

Model Number:

A-XD6 S 2 PACK WHITE

EAN:

4711081520160

UPC:

195553520164

Package Type:

Retail

Warranty:

3 Years

Ports:

• WAN: 1 x RJ45
• LAN: 1 x RJ45

Standards:

• IEEE 802.11a
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• WiFi 5 (802.11ac)
• WiFi 6 (802.11ax)
• IPv4
• IPv6

Transfer Rate:

• 802.11a: up to 54 Mbps
• 802.11b: up to 11 Mbps
• 802.11g: up to 54 Mbps
• WiFi 4 (802.11n) (1024QAM): up to 500 Mbps
• WiFi 5 (802.11ac) (1024QAM): up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz): up to 4808 Mbps

Network Architecture Types:

Infrastructure

Memory:

• 128 MB Flash
• 512 MB RAM

Antenna Type:

6 x Internal

Frequency Range:

• 2.4GHz 2x2
• 5GHz 4x4

Security:

• WPA/WPA2/WPA3-Personal
• WPA/WPA2-Enterprise
• AiProtection Pro
• Router Security Assessment
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Management:

• Operating mode: Wireless router mode
• Range extender mode
• Access point mode
• Media bridge mode
• Operating system: ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter: 64
• Maximum Firewall network service filter: 32
• Maximum Firewall URL filter: 64
• Wake on LAN (WOL)
• SSH
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log

VPN Support:

• VPN Client L2PT
• VPN Client OVPN
• VPN Client PPTP
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP

LED indicators:

1 x Power

Button:

• WPS
• Reset

Input Power:

• AC Input: 110V-240V(50~60Hz)
• DC Output: 12V with max. 2A current

Product Width:

59.05mm

Product Length:

126.4mm

Product Height:

129.7mm

Product Weight:

425g

Package Width:

17.5cm

Package Length:

31.5cm

Package Height:

15.8cm

Gross Weight:

2.72Kg

Special Features:

• WiFi Coverage Everywhere. Always Secure.
• Whole-home Coverage.
• Smart and Flexible Backhaul Configuration.
• Easier-than-ever Setup.
• Make the Internet a Safer Place for Everyone.
• More Privacy, anywhere.
• Smart Looks for Smart Homes.

Package Contents:

• 2 x ZenWiFi XD6S
• 2 x RJ-45 Cable
• 2 x UK Power Adapter
• 2 x Wall Mount Kit
• Warranty Card
• Quick Start Guide

Keywords:

• WiFi 6
• AX5400
• Mesh
• WPA
• WPA2
• WPA3
• PPPoE
• PPTP
• L2TP
