Product Name:

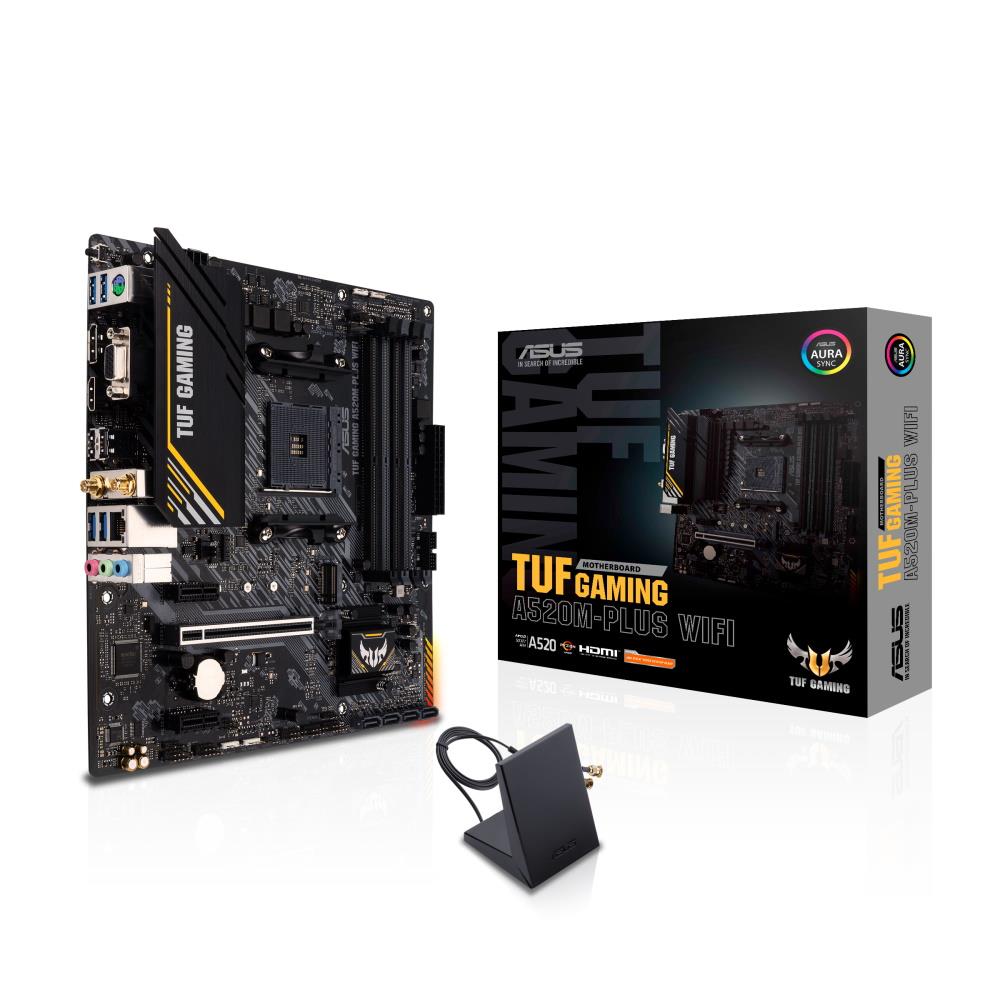

ASUS TUF GAMING A520M-PLUS WIFI (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING A520M-PLUS WIFI

EAN:

4711081154273

UPC:

195553154277

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 128 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

A520

CPU Interface:

Socket AM4

CPU Support:

https://www.asus.com/Motherboards-Components/Motherboards/TUF-Gaming/TUF-GAMING-A520M-PLUS-WIFI/HelpDesk_CPU/

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4866 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

On-Board LAN:

1 x Realtek 1Gb Ethernet

Wireless NIC:

Realtek Wi-Fi 8821CE

Wireless Technology:

• 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO
• Supports dual frequency band 2.4/5GHz
• Supports channel bandwidth: HT20/HT40/HT80

Bluetooth:

v5.0

On-Board Audio:

Realtek ALC 887/897 7.1 Surround Sound High-Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

1 x ASUS Wi-Fi Module

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

S/PDIF Out Header(s):

1

Internal Other Port(s):

• 2 x AURA Addressable Gen 2 header
• 2 x AURA RGB headers

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27.5cm

Package Length:

28cm

Package Height:

7cm

Gross Weight:

1.30Kg

Special Features:

• AMD AM4 socket: Ready for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors.
• Comprehensive cooling: Large VRM heatsink, PCH heatsink, Fan Xpert 2+.
• Made for online gaming: 802.11ac Wi-Fi, TUF LANGuard and TurboLAN technology.
• Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s cables
• IO Shield
• 1 x M.2 SSD screw package
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF Gaming sticker
• Support Disk
• 1 x TUF Certification card
• Manual
