Product Name:

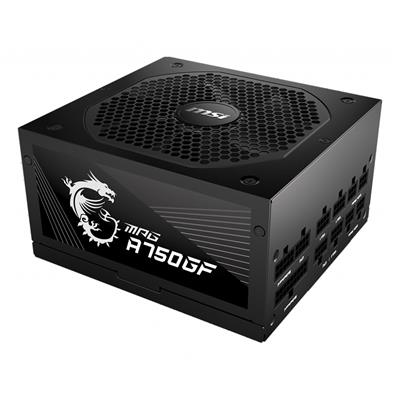

MSI 750W ATX Fully Modular Power Supply - MPG A750GF - (Active PFC/80 PLUS Gold)

Web Address:

uk.msi.com

Model Number:

MPG A750GF

EAN:

4719072771102

UPC:

824142225752

Package Type:

Retail

Warranty:

10 Years

Maximum Power:

750W

20+4-pin Main:

1

4+4-pin ATX/EPS:

2

6+2-pin PCI-E:

6

SATA Connector(s):

8

Peripheral Connector(s):

4

Floppy Connector(s):

1

PFC:

Active

AC Input:

100-240VAC

Over Voltage Protection:

Yes

Under Voltage Protection:

Yes

Short Circuit Protection:

Yes

Over Power Protection:

Yes

Over Current Protection:

Yes

Over Temperature Protection:

Yes

Colour:

Black

Cable Type:

Flat

Cooling System:

1 x 140mm Fan

Product Width:

150mm

Product Length:

160mm

Product Height:

86mm

Package Width:

21cm

Package Length:

29cm

Package Height:

13cm

Gross Weight:

3.01Kg

Special Features:

• Supports the NVIDIA GeForce RTX 30 Series GPUs.
• Full modular cable design.
• Flat cable equipment.
• 10-year warranty.
• 80 Plus Gold certified for high efficiency.
• 100% all Japanese 105oC capacitor.
• Active PFC design.
• Industrial level protection with OVP, OCP, OPP, OTP, SCP and UVP.
• LLC Half Bridge Topology with DC-DC module design.

Package Contents:

• Power Supply Units
• Cable Set
• UK Power Lead
