Product Name:

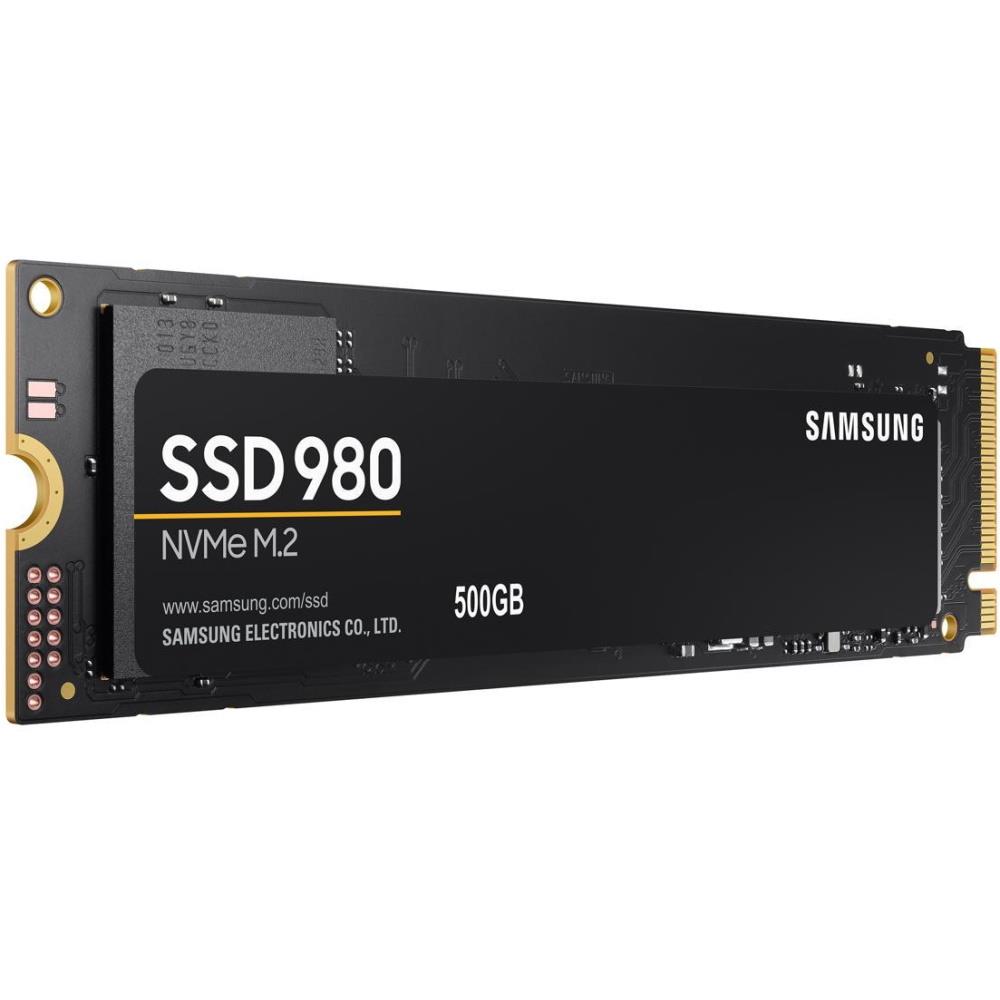

Samsung 500GB 980 M.2 Solid State Drive MZ-V8V500BW (PCIe Gen 3.0 x4/NVMe)

Web Address:

www.samsung.com

Model Number:

MZ-V8V500BW

EAN:

8806090572227

UPC:

887276437231

Package Type:

Retail

Warranty:

5 Years

Series:

980

Capacity:

500GB

Interface:

PCIe Gen 3.0 x 4/NVMe 1.4

Controller Chip:

Samsung Pablo Controller

Form Factor:

M.2 (2280)

Max. Sequential Read Rate:

3100MB/s

Max. Sequential Write Rate:

2600MB/s

Random Read:

400,000 IOPS

Random Write:

470,000 IOPS

Buffer Size:

HMB (Host Memory Buffer)

Operating Shock:

0.5ms 1500G

Temperature Operating:

0°C to 70°C

M.T.B.F.:

1,500,000 Hours

Voltage:

3.3V

Power Consumption:

• Average: 4.3W
• Burst Mode: 5.9W

Product Width:

22.15mm

Product Length:

80.15mm

Product Height:

2.38mm

Package Width:

10cm

Package Length:

15cm

Package Height:

2.5cm

Gross Weight:

0.08Kg

Special Features:

• Samsung NVMe SSD powered by V-NAND technology.
• Upgrade to breath-taking NVMe speed.
• Built for the long run.
• Reliable thermal control.
• Smart thermal solution.
• TRIM Support.
• S.M.A.R.T Support.
• GC (Garbage Collection).
• AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive).

Package Contents:

Solid State Drive

Keywords:

• Solid State Drive
• M.2
• 2280
• PCIe3
