Product Name:

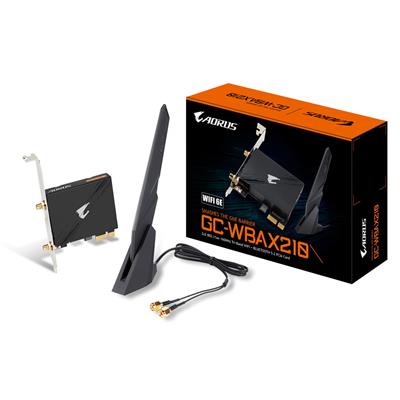

Aorus GC-WBAX210 WiFi 6E AX210 PCI-E Network Interface Card + Bluetooth v5.2

Web Address:

www.gigabyte.com

Model Number:

GC-WBAX210

EAN:

4719331814953

UPC:

889523026649

Package Type:

Retail

Warranty:

2 Years

Device Type:

Wireless NIC

Interface:

PCI Express x1

Standards:

• IEEE 802.11-2016 and select amendments (selected feature coverage) IEEE 802.11a, b, d ,e ,g ,h ,I ,k , n ,r ,u ,v ,w ,ac ,ax
• Fine Timing Measurement based on 802.11-2016, Wi-Fi Location R2 (802.11az) HW readiness

Transfer Rate:

Up to 2400Mbps

Network Architecture Types:

• Infrastructure
• Ad Hoc

Antenna Type:

2Tx2R

Frequency Range:

2.4GHz/5GHz/6GHz

Security:

• Security Methods: WPA2,WPA3
• Authentication Protocols: 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0 –MSCHAPv2 (EAP-SIM, EAP-AKA, EAP-AKA)

Package Width:

15cm

Package Length:

21.5cm

Package Height:

5.5cm

Gross Weight:

0.31Kg

Special Features:

• Intel WI-FI 6E AX210 module built-in.
• Dedicated spectrum in 6GHz band for maximum speed and ultra-low latencies.
• Support dual-stream Wireless in the 2.4GHz, 5GHz and 6GHz bands.
• IEEE 802.11. acR2+ax compliant.
• High speed wireless connection up to 2400Mbps.
• Fully qualified BLUETOOTH 5.2.
• MU-MIMO TX/RX.
• Paired with AORUS high performance 2Tx2R antenna.
• PCIe x1 interface card.

Package Contents:

• NIC
• Antenna

Keywords:

• NIC
• WiFi6E
• Bluetooth
