Product Name:

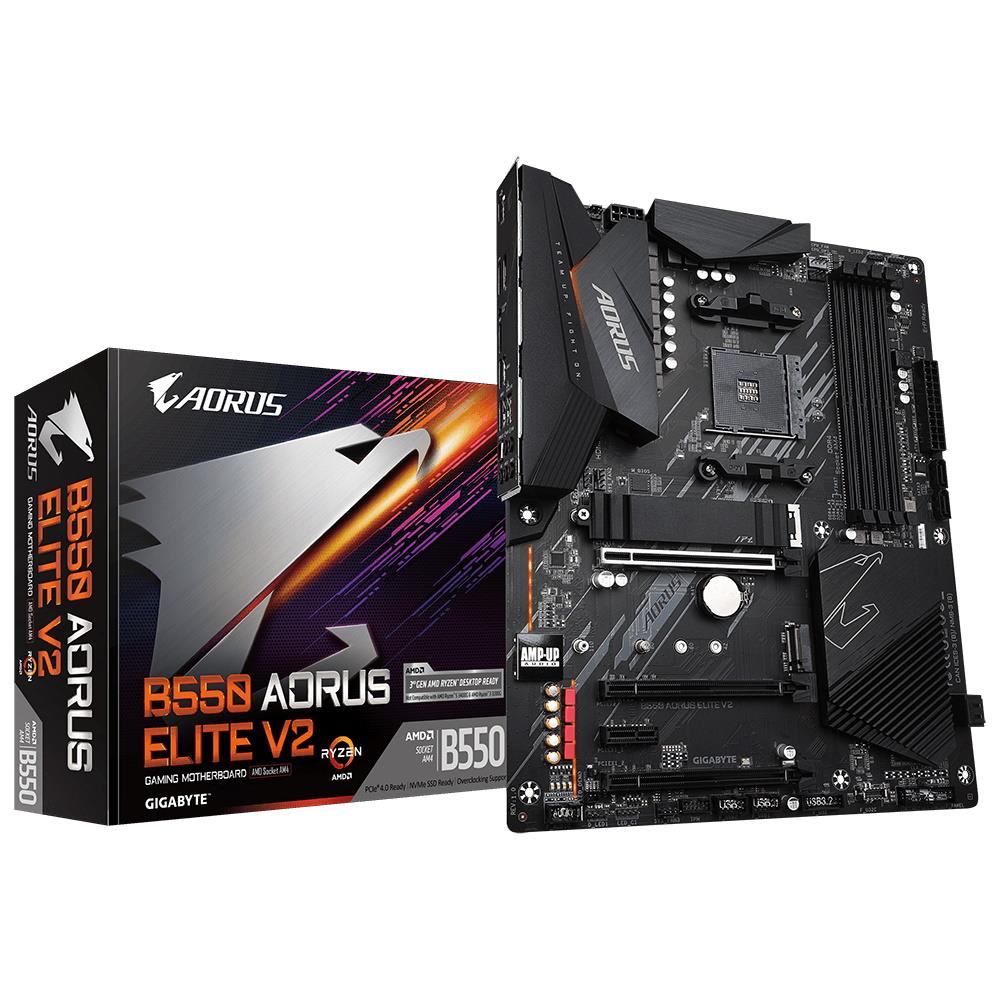

Aorus B550 AORUS ELITE V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

www.gigabyte.com

Model Number:

B550 AORUS ELITE V2

EAN:

4719331809898

UPC:

889523023945

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

gigabyte.com/Motherboard/B550-AORUS-ELITE-V2-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4400 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

3

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1 x SATA/PCIe 4.0 x4/x2 or SATA/PCIe 3.0 x4/x21 x SATA/PCIe 3.0 x4/x2

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

On-Board Audio:

Realtek ALC1200 codecHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 2:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x CPU Cooler LED Strip/RGB LED Strip Header2 x Addressable LED Strip Headers2 x RGB LED Strip Headers

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

8cm

Gross Weight:

1.62Kg

Special Features:

Supports AMD Ryzen 5000 Series/3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.12+2 Phases Digital Twin Power Design with 50A DrMOS.Advanced Thermal Design with Enlarged Surface Heatsinks.Ultra-Durable PCIe 4.0 x16 Slot.Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with One Thermal Guard.AMP-UP Audio with ALC1200 and WIMA Capacitors.Blazing Fast 2.5GbE LAN with Bandwidth Management.Front USB 3.2 Gen1 Type-C and DisplayPort and HDMI for Multiple Display.RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.Pre-installed IO Shield for Easy and Quick Installation.

Package Contents:

B550 AORUS ELITE V2Support Disk1 x G Connector2 x SATA cablesManual

Keywords:

MotherboardAM4B550DDR4DisplayPortHDMIATX
