Product Name:

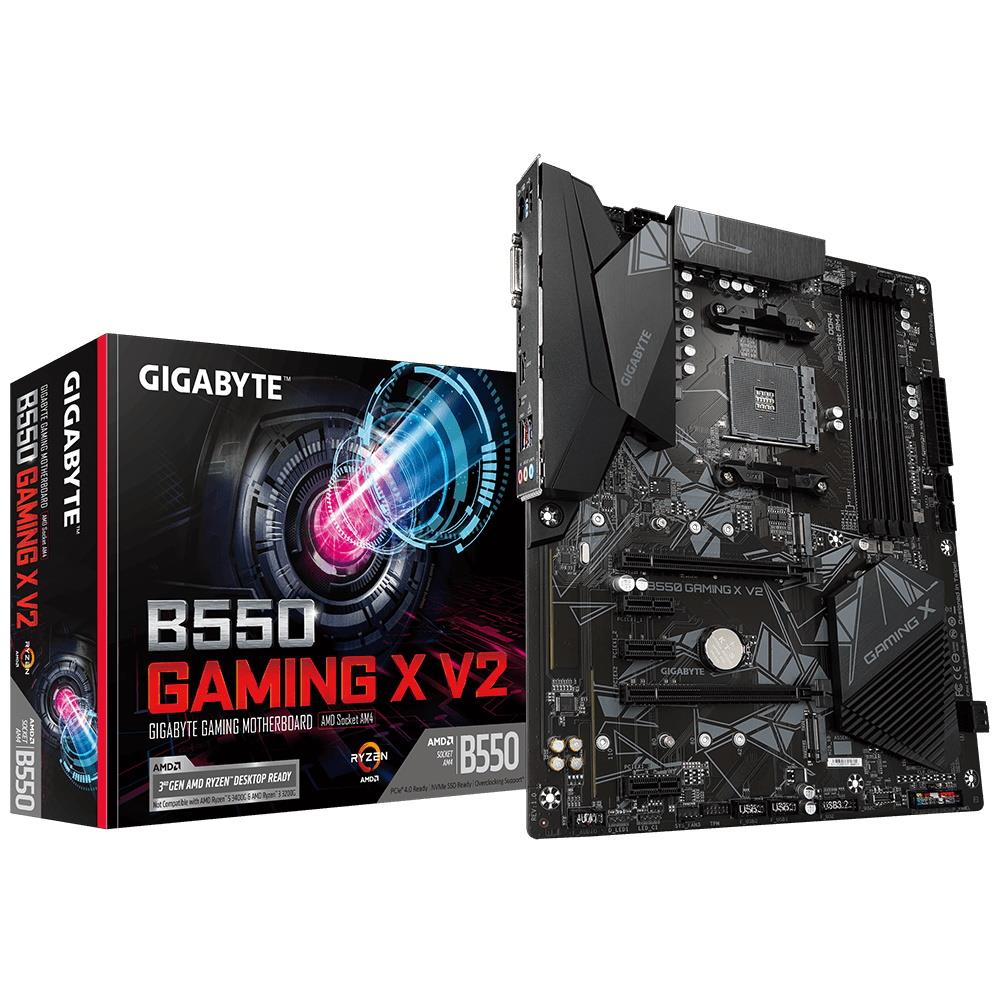

Gigabyte B550 Gaming X V2 (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

www.gigabyte.com

Model Number:

B550 GAMING X V2

EAN:

4719331810702

UPC:

889523024102

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Ajax/SupportFunction/Getcpulist?Type=Product&Value=7498

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4733 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

3

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio:

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

3

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

26cm

Package Length:

33cm

Package Height:

7cm

Gross Weight:

1.23Kg

Special Features:

Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon™ Graphics Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.10+3 Phases Digital Twin Power Design with Low RDS(on) MOSFETs.Ultra-Durable PCIe 4.0 Ready x16 Slot.Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connectors.GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management.Front USB 3.2 Gen1 Type-C and HDMI and DVI-D for Multiple Display.High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.RGB FUSION 2.0 support Addressable LED and RGB LED Strips.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.Anti-Sulphur Resistors Design.

Package Contents:

B550 GAMING X V2 motherboardManualSupport Disk2 x SATA cables
