Product Name:

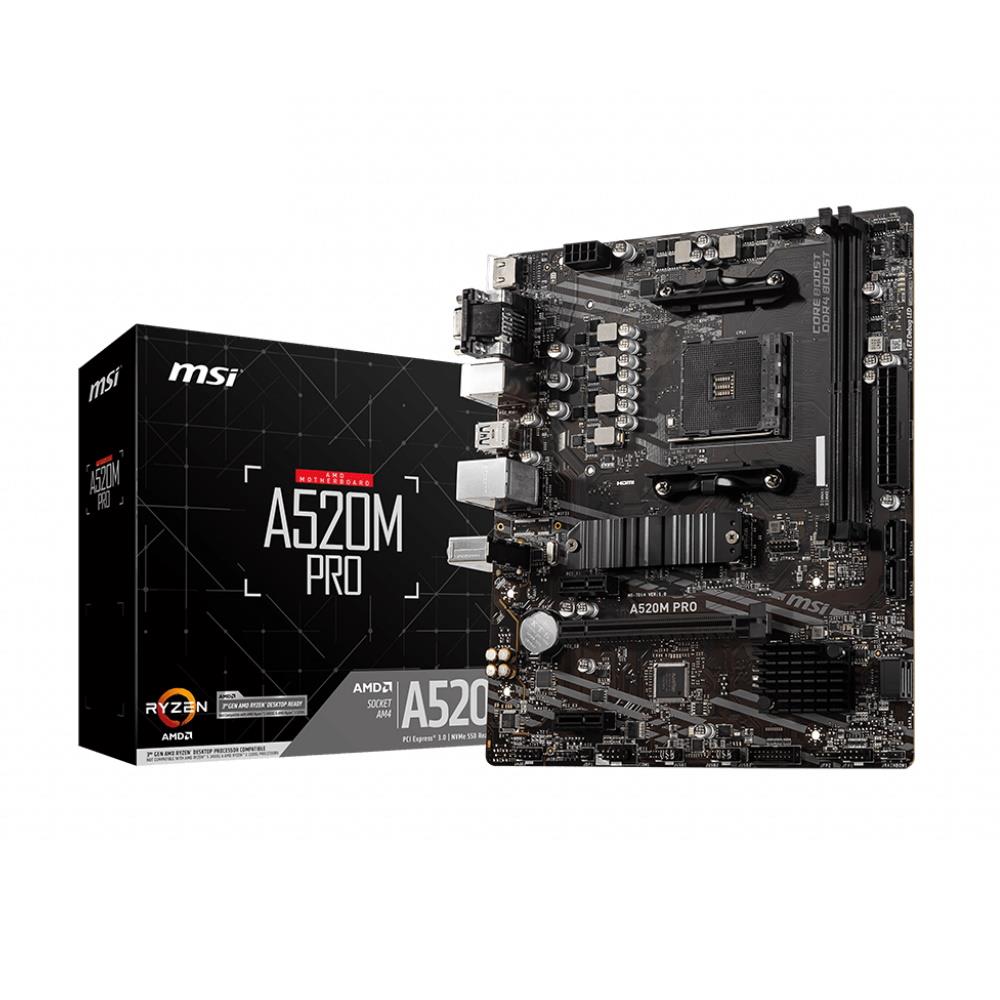

MSI A520M PRO (Socket AM4/A520/DDR4/S-ATA 600/Micro ATX)

Web Address:

uk.msi.com

Model Number:

A520M PRO

EAN:

4719072755492

UPC:

824142226063

Package Type:

Retail

Warranty:

3 Years

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/support/A520M-PRO#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 4600+ (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

1

On-Board LAN:

1 x Realtek RTL8111H LAN controller

On-Board Audio:

Realtek ALC892 Codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back VGA Port(s):

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x 4-pin RGB LED Connector
• 1 x 3-pin RAINBOW LED Connector

Form Factor:

Micro ATX

Product Width:

210mm

Product Length:

244mm

Package Width:

26cm

Package Length:

26.5cm

Package Height:

5.5cm

Gross Weight:

0.79Kg

Special Features:

• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
• Core Boost: With premium layout and digital power design to support more cores and provide better performance.
• DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
• Audio Boost: Reward your ears with studio grade sound quality.
• Dragon Centre: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

Package Contents:

• B550M PRO/ A520M PRO
• 2 x SATA 6G Cables
• 1 x M.2 screws (3 pcs./pack)
• Product Registration Card
• IO Shield
• Case Badge
• Support Disk
• Quick Installation Guide
