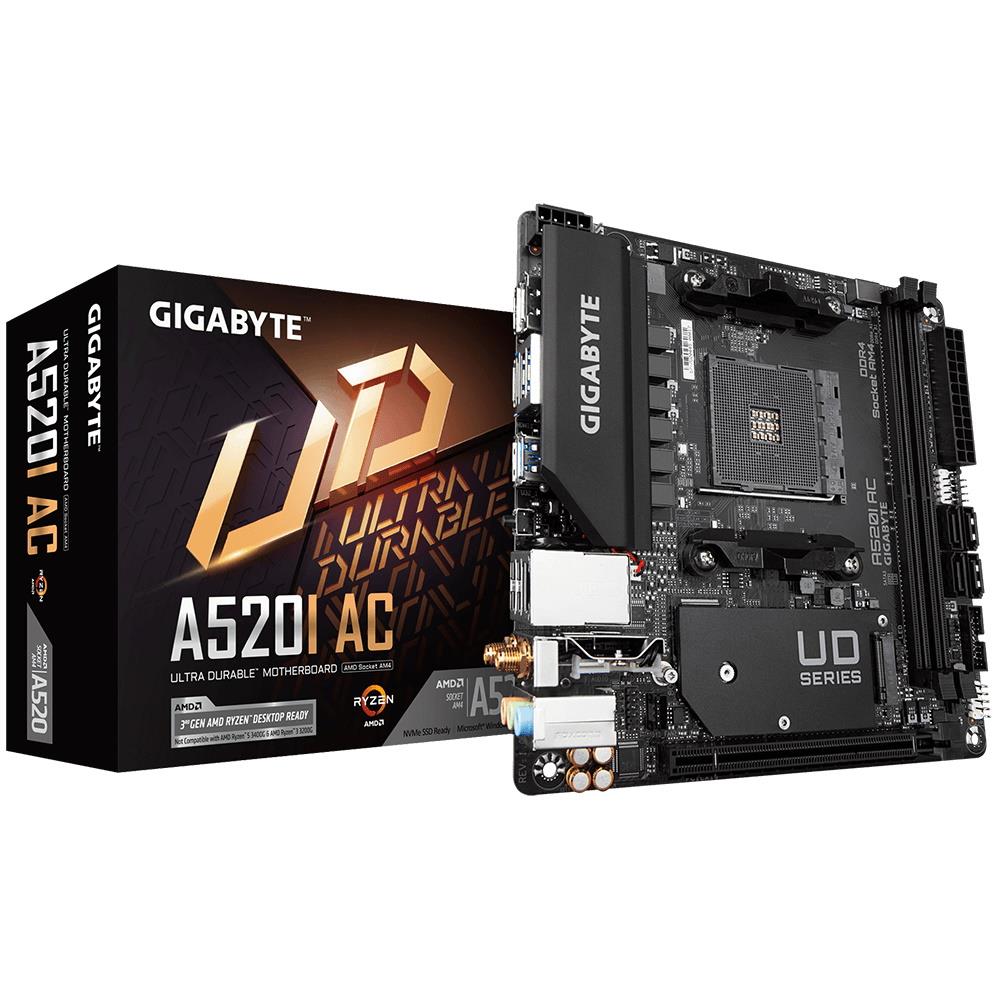

GIGABYTE AM4 A520I AC M-ITX
SKU: 119285

GIGABYTE AM4 A520I AC M-ITX



Product Group:

Motherboards

Manufacturer:

GIGABYTE

SKU:

119285

Product Specifications

Product Name:

Gigabyte A520I AC (Socket AM4/A520/DDR4/S-ATA 600/Wi-Fi 5/Mini ITX)

Web Address:

www.gigabyte.com

Model Number:

A520I AC

EAN:

4719331809867

UPC:

889523023785

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD A520

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/A520I-AC-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 5100 (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

1

LAN Speed:

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Wireless NIC:

WiFi 5

Bluetooth:

v4.2

On-Board Audio:

Realtek ALC887 codec

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back HDMI Port(s):

2

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA antenna connectors (1T1R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x Addressable LED Strip Header1 x RGB LED Strip Header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

19cm

Package Length:

22cm

Package Height:

7.5cm

Gross Weight:

0.82Kg

Special Features:

Supports 3rd Gen AMD Ryzen Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.Direct 6 Phases Digital VRM Solution with 55A DrMOS.Ultra-Fast NVMe PCIe 3.0 x4 M.2.Onboard Intel Dual Band 802.11ac WIFI and BT 4.2 with Ultra Durable Antenna.GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management.DisplayPort, Dual HDMI for for Multiple Display.RGB FUSION 2.0 with Addressable LED and RGB LED Strips Support.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.Anti-Sulfur Resistors Design.

Package Contents:

A520I AC Motherboard2 x SATA CablesSupport DiskIO ShieldManualOne Fan Power Extension CableOne Antenna

Keywords:

MotherboardAM4A520DDR4WiFiHDMIMini-ITX
