Product Name:

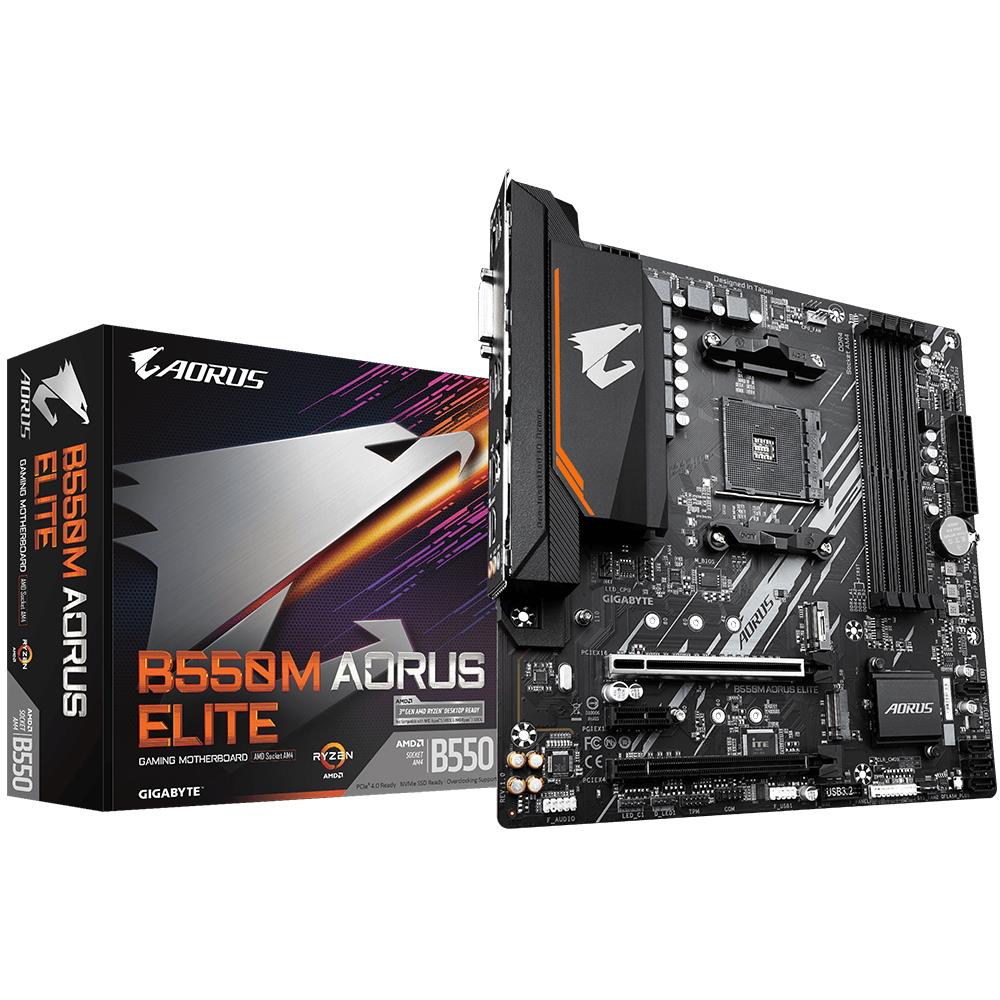

Aorus B550M AORUS ELITE (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)

Web Address:

www.gigabyte.com

Model Number:

B550M AORUS ELITE

EAN:

4719331809546

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4733 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2

LAN Speed:

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

On-Board Audio:

Realtek ALC887 codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

4

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.1 Header(s) Gen 1:

1

COM Port Header(s):

1

TPM Header(s):

1

Internal Other Port(s):

2 x Addressable LED Strip Headers2 x RGB LED Strip Headers1 x CPU Cooler LED Strip/RGB LED Strip Header

Internal Button(s):

1 x Q-Flash Plus

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

27cm

Package Length:

27.5cm

Package Height:

7cm

Gross Weight:

1.14Kg

Special Features:

Supports 3rd Gen AMD Ryzen Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs.5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs.Ultra Durable PCIe 4.0 Ready x16 Slot.Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors.High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality.GIGABYTE Exclusive 8118 Gaming GbE LAN.Rear HDMI and DVI Support.RGB FUSION 2.0 Supports Addressable LED and RGB LED Strips.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.Anti-Sulfur Resistors Design.

Package Contents:

B550M AORUS ELITE MotherboardManualSupport Disk2 x SATA Cables

Keywords:

MotherboardAM4B550DDR4Micro ATX
