Product Name:

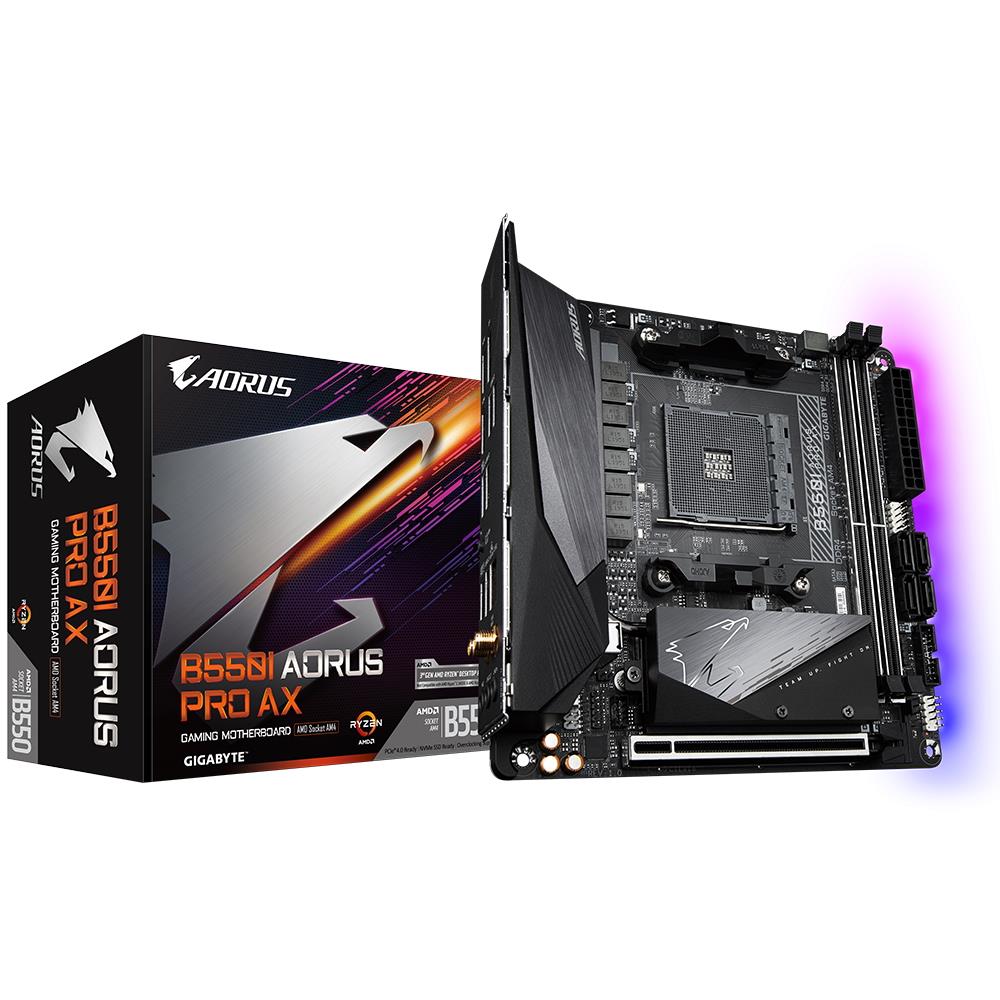

Aorus B550I AORUS PRO AX (Socket AM4/B550/DDR4/S-ATA 600/Mini ITX)

Web Address:

www.gigabyte.com

Model Number:

B550I AORUS PRO AX

EAN:

4719331809508

Package Type:

Retail

Warranty:

3 Years

BIOS:

1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Chipset:

AMD B550

CPU Interface:

Socket AM4

CPU Support:

https://www.gigabyte.com/Motherboard/B550I-AORUS-PRO-AX-rev-10/support#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

Up to DDR4 4866 (O.C.)

Max. Memory Support:

64GB

PCI Express 4.0 x16:

1

PCI Express 4.0 x1:

1

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless NIC:

Wi-Fi 6

Bluetooth:

v5.0

On-Board Audio:

Realtek ALC1220-VB codec

On-Board Video:

Processor with integrated graphics is required

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

2

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

Back Other Port(s):

2 x SMA antenna connectors (2T2R)

Back Button(s):

1 x Q-Flash Plus

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

1

USB 3.2 Header(s) Gen 1:

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x Addressable LED Strip Header1 x RGB LED Strip Header

Form Factor:

Mini ITX

Product Width:

170mm

Product Length:

170mm

Package Width:

23.5cm

Package Length:

27cm

Package Height:

10cm

Gross Weight:

1.31Kg

Special Features:

Supports 3rd Gen AMD Ryzen Processors.Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs.Direct 8 Phases Digital VRM Solution with 90A Smart Power Stage (SPS).Advanced Thermal Design with Extended & Multi-Layered Heatsink and Thermal Baseplate.Ultra Durable PCIe 4.0 Ready x16 Slot.Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard.Onboard Intel WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna.AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors for Rear 120dB SNR.Blazing Fast 2.5GbE LAN with Bandwidth Management.USB 3.2 Gen2 Type-C and DisplayPort + Dual HDMI Support.RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips.Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.Pre-installed IO Shield for Easy and Quick Installation.

Package Contents:

B550I AORUS PRO AX motherboardM.2 screw(s)/M.2 standoff(s)Support Disk1 x AntennaManual1 x Fan Power Extension Cable2 x SATA Cables1 x RGB LED Strip Extension

Keywords:

MotherboardAM4B550DDR4Wi-Fi 6Bluetooth
