Product Name:

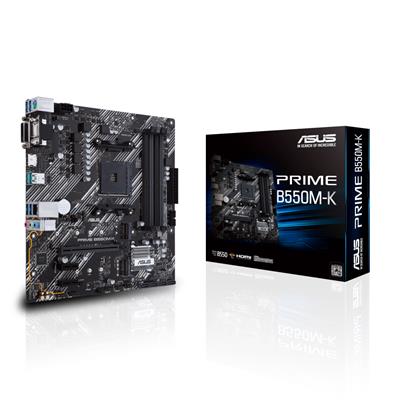

ASUS PRIME B550M-K (Socket AM4/B550/DDR4/S-ATA 600/Micro ATX)

Web Address:

www.asus.com

Model Number:

PRIME B550M-K

EAN:

4718017758284

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B550

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4400 (O.C.)

Max. Memory Support:

128GB

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

2

S-ATA 6Gb/s Port(s):

4

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

Realtek RTL8111H 1Gb Ethernet

On-Board Audio:

Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

2

Back VGA Port(s):

1

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

244mm

Product Length:

244mm

Package Width:

26cm

Package Length:

27cm

Package Height:

5cm

Gross Weight:

0.92Kg

Special Features:

• AMD AM4 socket: Ready for 3rd Gen AMD Ryzen processors.
• Comprehensive cooling: PCH heatsink and Fan Xpert 2+.
• Ultrafast connectivity: Dual M.2, PCIe 4.0, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A.
• 5X Protection III: Multiple hardware safeguards for all-around system protection.

Package Contents:

• Motherboard
• Manual
• IO Shield
• 2 x SATA 6Gb/s Cables
• 1 x Supporting Disk
• 1 x M.2 SSD Screw Package
