Product Name:

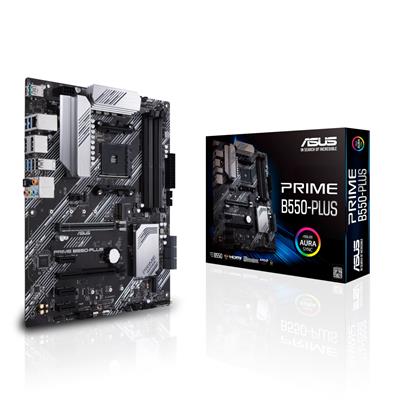

ASUS PRIME B550-PLUS (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

www.asus.com

Model Number:

PRIME B550-PLUS

EAN:

4718017782340

Package Type:

Retail

Warranty:

3 Years

BIOS:

• 256 Mb Flash ROM
• UEFI AMI BIOS

Chipset:

AMD B550

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

3

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

1 x Realtek RTL8111H 1Gb Ethernet

On-Board Audio:

Realtek ALC887 7.1-Channel High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x AURA Addressable Gen 2 Header
• 2 x AURA RGB Headers
• 1 x Front Panel Audio Header (AAFP)
• 1 x T-Sensor Header
• 1 x Thunderbolt Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

33cm

Package Height:

5cm

Gross Weight:

1.36Kg

Special Features:

• ASUS 5X Protection III
• ASUS Q-Design
• ASUS Thermal Solution
• ASUS EZ DIY
• AURA Sync

Package Contents:

• Motherboard
• 2 x SATA 6Gb/s Cables
• 1 x IO Shield
• 1 x M.2 SSD Screw Package
• Support Disk
• Manual
