Product Name:

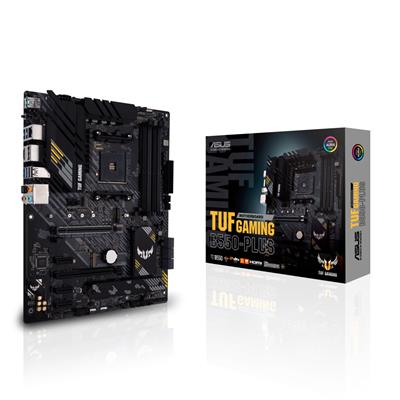

ASUS TUF GAMING B550-PLUS (Socket AM4/B550/DDR4/S-ATA 600/ATX)

Web Address:

www.asus.com

Model Number:

TUF GAMING B550-PLUS

EAN:

4718017749435

Package Type:

Retail

Warranty:

3 Years

BIOS:

256 Mb Flash ROMUEFI AMI BIOS

Chipset:

AMD B550

CPU Interface:

Socket AM4

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

Up to DDR4 4400 (O.C.)

Max. Memory Support:

128GB

PCI Express 3.0 x16:

1

PCI Express 4.0 x16:

1

PCI Express 3.0 x1:

3

S-ATA 6Gb/s Port(s):

6

RAID:

Raid 0/1/10

M.2 Socket(s):

2

On-Board LAN:

1 x Realtek RTL8125B 2.5Gb Ethernet

On-Board Audio:

Realtek ALC S1200A 7.1-Channel High Definition Audio CODEC

On-Board Video:

Processor with integrated graphics is required

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back USB 3.2 Port(s) Type-A Gen 2:

1

Back USB 3.2 Port(s) Type-C Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Button(s):

1 x BIOS FlashBack

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

1

Thunderbolt Header(s):

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

1 x AURA Addressable Gen 2 Header2 x AURA RGB Headers1 x Thermal Sensor Header

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27.5cm

Package Length:

34cm

Package Height:

7cm

Gross Weight:

1.47Kg

Special Features:

ASUS TUF ProtectionASUS Q-Design ASUS Thermal SolutionASUS EZ DIYAURA Sync

Package Contents:

Motherboard2 x SATA 6GB/s Cables1 x IO Shield1 x M.2 Rubber Package1 x M.2 SSD Screw Packages1 x M.2 Key E Screw Package1 x TUF Gaming Sticker1 x Support Disl1 x TUF Certification Card1 x User Manual

Keywords:

MotherboardAM4B550DDR4PCIe 4.0
