Product Name:

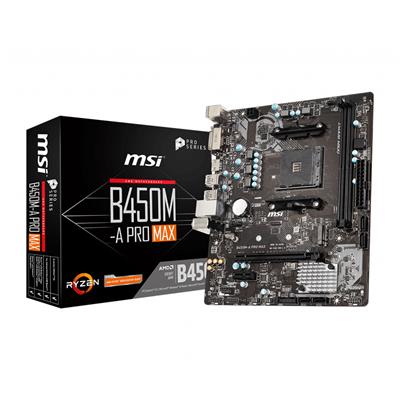

MSI B450M-A PRO Max (Socket AM4/B450/DDR4/S-ATA 600/Micro ATX)

Web Address:

uk.msi.com

Model Number:

C-B450M-A PRO MAX

EAN:

4719072667696

Package Type:

Retail

Warranty:

1 Year

BIOS:

• 1 x 256 Mb flash
• UEFI AMI BIOS
• ACPI 6.1, SM BIOS 2.8
• Multi-language

Chipset:

AMD B450

CPU Interface:

Socket AM4

CPU Support:

https://www.msi.com/Motherboard/support/B450M-A-PRO-MAX#support-cpu

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

2 x 288-pin

RAM Speeds:

• DDR4 1866
• DDR4 2133
• DDR4 2400
• DDR4 2667
• DDR4 2800 (O.C.)
• DDR4 2933 (O.C.)
• DDR4 3000 (O.C.)
• DDR4 3066 (O.C.)
• DDR4 3200 (O.C.)
• DDR4 3466 (O.C.)
• DDR4 3733 (O.C.)
• DDR4 3866 (O.C.)
• DDR4 4000 (O.C.)
• DDR4 4133 (O.C.)

Max. Memory Support:

32GB

PCI Express 3.0 x16:

1

PCI Express 2.0 x1:

1

S-ATA 6Gb/s Port(s):

4

M.2 Socket(s):

1

LAN Speed:

10/100/1000

On-Board LAN:

Realtek 8111H

On-Board Audio:

7.1-Channel High Definition Audio

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Mouse Port:

1

Back PS/2 Keyboard Port:

1

Back USB 2.0 Port(s):

2

Back USB 3.2 Port(s) Type-A Gen 1:

4

Back DVI-D Port(s):

1

Back HDMI Port(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

3

24-pin ATX Power:

1

4-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.2 Header(s) Gen 1:

1

COM Port Header(s):

1

Front Panel Audio Connector:

1

TPM Header(s):

1

Form Factor:

Micro ATX

Product Width:

200mm

Product Length:

236mm

Package Width:

26cm

Package Length:

26cm

Package Height:

5.5cm

Gross Weight:

1.57Kg

Special Features:

• Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4.
• Supports DDR4 Memory, up to 4133 (OC) MHz.
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Audio Boost: Reward your ears with studio grade sound quality.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

Package Contents:

• Motherboard
• Support Disk
• Quick Installation Guide
• IO Shield
• 2 x SATA Data cables
• Case Badge
• Product registration card
• 1 x M.2 Screw
