Product Name:

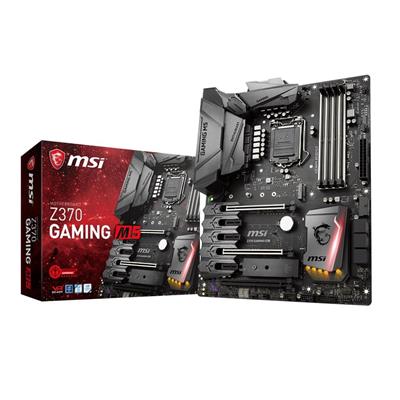

MSI Z370 GAMING M5 (Socket 1151/Z370/DDR4/S-ATA 600/ATX)

Web Address:

uk.msi.com

Model Number:

C-Z370 GAMING M5

EAN:

4719072540418

UPC:

824142152997

Package Type:

Retail

Warranty:

1 Year

Chipset:

Intel Z370 Express

CPU Interface:

Socket 1151

RAM Technology:

DDR4 (Dual Channel)

RAM Slots:

4 x 288-pin

RAM Speeds:

• DDR4 2133
• DDR4 2400
• DDR4 2667
• DDR4 2800 (O.C.)
• DDR4 3000 (O.C.)
• DDR4 3200 (O.C.)
• DDR4 3300 (O.C.)
• DDR4 3600 (O.C.)
• DDR4 3733 (O.C.)
• DDR4 3866 (O.C.)
• DDR4 4000+ (O.C.)

Max. Memory Support:

64GB

PCI Express 3.0 x16:

3

PCI Express 3.0 x1:

3

S-ATA 6Gb/s Port(s):

6

M.2 Socket(s):

2

LAN Speed:

10/100/1000

On-Board LAN:

Killer

On-Board Audio:

Realtek ALC1220 Codec

On-Board Video:

Processor with integrated graphics is required

Back PS/2 Keyboard/Mouse Port:

1

Back USB 2.0 Port(s):

3

Back USB 3.1 Port(s) Type-A Gen 1:

2

Back USB 3.1 Port(s) Type-C Gen 1:

1

Back USB 3.1 Port(s) Type-A Gen 2:

1

Back HDMI Port(s):

1

Back DisplayPort(s):

1

Back LAN Port(s):

1

Back Audio Jack(s):

5

Back S/PDIF Output Port(s):

1

Back Clear CMOS Switch:

Button

24-pin ATX Power:

1

8-pin ATX Power:

1

USB 2.0 Header(s):

2

USB 3.1 Header(s) Gen 1:

2

Front Panel Audio Connector:

1

TPM Header(s):

1

Internal Other Port(s):

• 1 x RGB LED connector
• 1 x 2-Digit Debug Code LED
• 1 x LED power input connector

Internal Button(s):

BIOS Flashback

Form Factor:

Standard ATX

Product Width:

244mm

Product Length:

305mm

Package Width:

27cm

Package Length:

35.5cm

Package Height:

8cm

Gross Weight:

1.70Kg

Special Features:

• Supports Intel 8th Gen Intel Core/Pentium/Celeron processors for LGA 1151 socket
• Supports DDR4-4000 + (OC) memory.
• Mystic Light and Mystic Light Sync: Customize PC lights with 16.8 million colors / 17 effects easily controlled with Mystic Light APP or via phone.
• Twin Turbo M.2 with M.2 Shield V2: Built-in M.2 heatsink solution for M.2 SSDs to avoid overload, making them cooler and faster.
• Lightning USB 3.1 Gen2: using ASMedia ASM3142 USB 3.1 Gen2 controller chip, Lightning USB delivers the fastest speed for USB and reduces power consumption.
• Audio Boost 4: Bring your studio sound with high-end audio processor and Nahimic 2+ to bring you an impressive gaming experience.
• Killer LAN: Available with the lowest latency level with exclusive management of network access programs, Killer network chips will favor gaming applications that provide the lowest latency to use.
• DDR4 Boost with Steel Armor: The perfect shielding layer for DIMM slots that protects the DDR4 slots for best gaming performance and system overclocking.
• MULTI-GPU: Supports NVIDIA SLI and AMD CrossFire optimized PCI slot locations for large amounts of wind.
• VR Ready: Supports the best virtual reality experience to minimize latency and increase smoothness for images.
• In-Game Weapons: Game Boost, GAMING Hotkey, X-Boost, WTFast.
• EZ Debug LED: The fastest way to check for system errors.
• Click BIOS 5: Superior BIOS for high resolution gaming for fonts, commonly used items and search systems.
• GAMING CERTIFIED: Continuous testing of 24 hours of online and offline gaming from professional gamers.

Package Contents:

• Motherboard
• Quick Installation Guide
• Support Disk
• IO Shield
• 4 x SATA Data cables
• SLI Bridge
